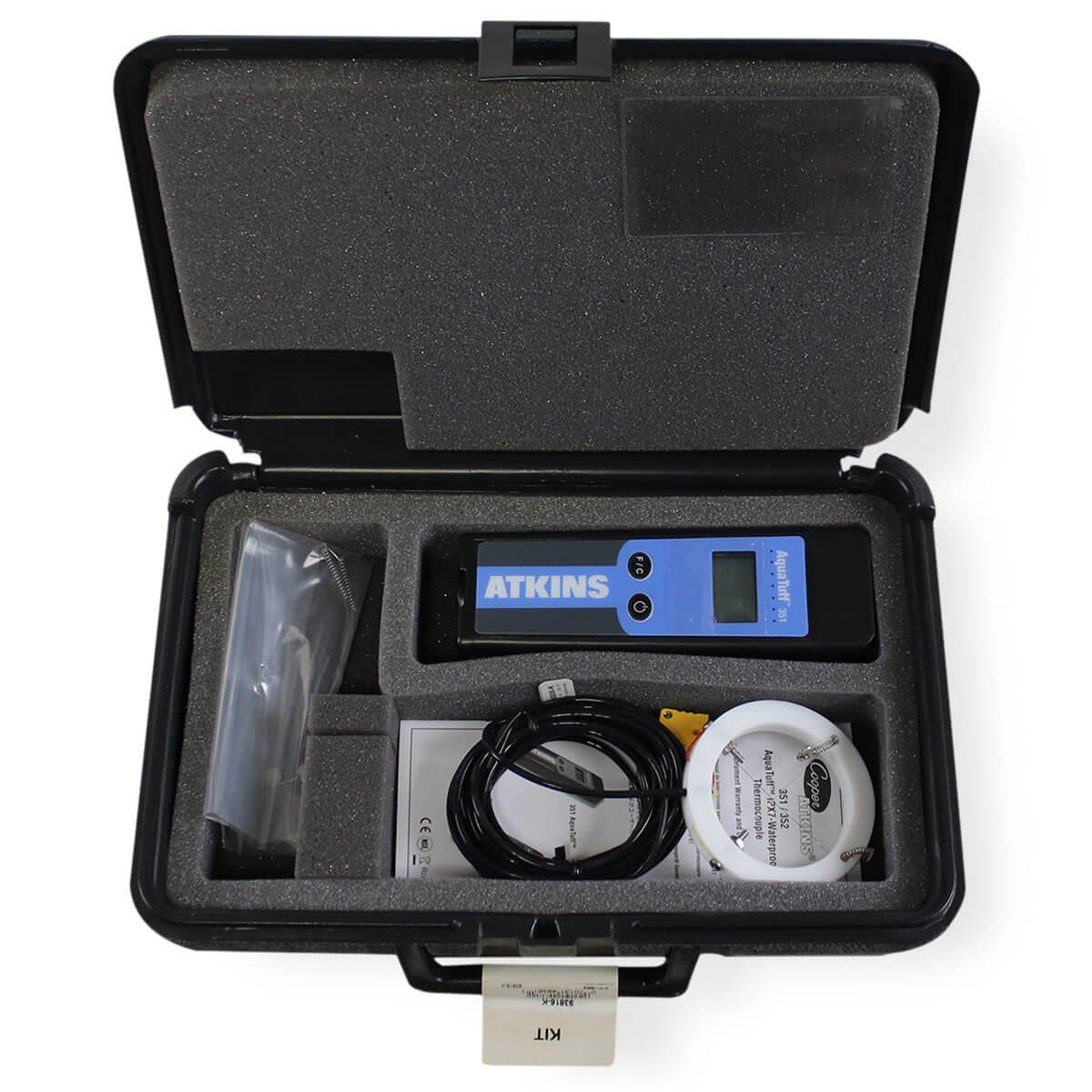

ATKINS Thermal Probe Complete Kit

The ATKINS Thermal Probe Complete Kit is a high-precision temperature measuring system designed specifically for screen printing applications. Unlike standard temperature measuring devices that only assess ambient air temperature, this kit directly measures ink temperatures, ensuring accurate curing profiles in conveyor dryers.

The kit includes:

• Digital Temperature Controller
• Temperature-Resistant Probe (constructed of Teflon® for durability and longevity)
• Extra Wires for extended use

With a 1-second response time in liquid and ±0.5°F accuracy, this probe ensures precise measurements, helping prevent under-cured or over-cured prints. The 15-ft silicone-jacketed cable allows for flexibility in various drying setups, while the IPX7 waterproof rating ensures durability.

Key Features:

• Direct Ink Contact Measurement – Ensures accurate ink curing profiles rather than relying on ambient air temperature.
• Fast Response Time – Reads temperature changes within 1 second in liquid.
• Wide Temperature Range – Measures from -40°F to 400°F (-40°C to 205°C).
• Auto Shut-Off – Powers down after 10 minutes of non-use to conserve battery life.
• Long Battery Life – Operates for 1,800 hours on two included AAA alkaline batteries.
• Certified & Reliable – NSF, CE, RoHS, and WEEE certified for safety and compliance.
• Durable & Reusable – Constructed of Teflon®, allowing for hundreds of uses without material degradation.
• IPX7 Waterproof Rated – Ensures protection against water damage.

Specifications:

• Accuracy: ±0.5°F (±0.3°C) across the entire temperature range
• Resolution: 0.1°F / 0.1°C
• Cable Length: 15 ft silicone outer jacket
• Battery Life: 1,800 hours (2 AAA alkaline batteries included)
• Warranty: 5-year instrument warranty, 1-year probe warranty

Why Choose the ATKINS Thermal Probe Kit?

For screen printers and textile professionals, accurately monitoring ink temperatures ensures a consistent and properly cured print. This probe kit eliminates guesswork, reducing misprints and ensuring high-quality results with every run.
