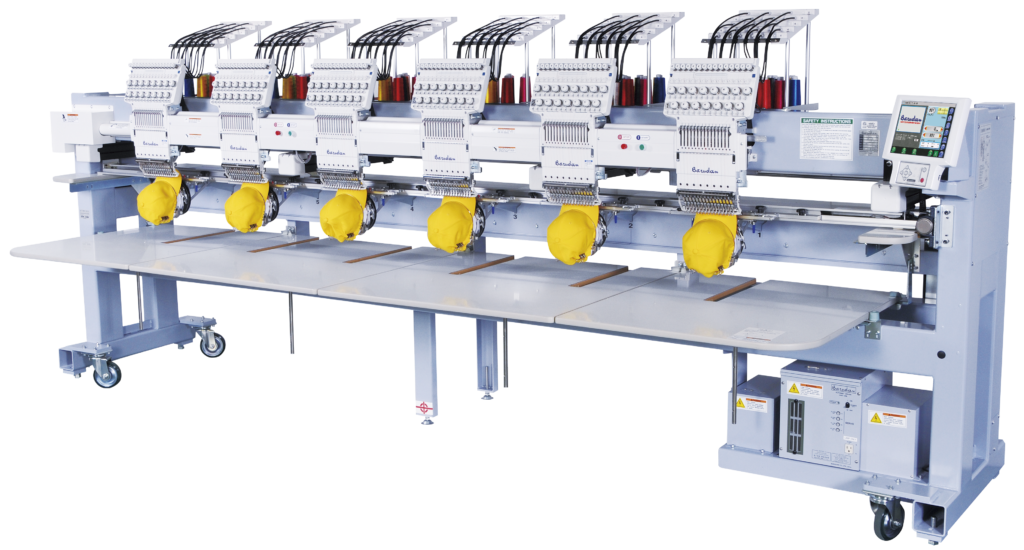

Barudan K-Series Multihead Embroidery Machines Overview 6 Head

Barudan K-Series Multihead Embroidery Machines Overview

Key Features:

• SmartHead Technology (SH Sewing Head)

• Servo Motors for increased production

• Bridge-Type Head Configuration for larger sewing fields:

  • 450 mm x 520 mm (17¾ x 20½ inches) for 2-head, 4-head, 6-head, and 8-head models

  • 450 mm x 380 mm (17¾ x 15 inches) available on 6-head 380 and 8-head 380 models

• Advantage EX Cap Frame System

  • Tool-free conversion between flats and caps

  • Includes quick-install drive unit and framing device

  • Two cap frames per sewing head

• Positive Needle Drive Technology for fine silk to heavy leather

• 15 Needles per Head

• 1100 Stitches per Minute (Flats), 1000 SPM (Caps)

• K-Series Automat: 15 needles, Lockstitch Sewing Heads (6)

• Display: 10.4" Touch Color LCD

• Smart Connectivity:

  • LAN Port (Baruden LEM Networking Software Compatible)

  • COM Port (For Baruden's Design File Server)

• Media Compatibility: USB Memory Stick (Holds 5,000 designs in up to 50 folders)

• Trimming System: Cuts both top and bottom threads

Standard Frames (Two per Sewing Head):

• Round Frames:

  • 12 cm (4½ inches)

  • 15 cm (5¾ inches)

  • 18 cm (7 inches)

• Oblong Frames:

  • 300 x 290 mm (11¾ x 11 inches)

  • 330 x 438 mm (12¾ x 17 inches) Not available on 380 models

• Additional Frames Available:

  • 9 cm (3½ inches) Blue Round Frames

  • 460 x 434 mm (18 x 17 inches) Not available on 380 models

Performance Specifications:

• Sewing Field: 450 x 520 mm (17¾ x 20½ inches)

• Stitch Length: 0.1 - 12.7 mm (without jump); virtually unlimited (with jump)

• Sewing Speed:

  • 200-1100 SPM (Standard Frames)

  • 200-1000 SPM (Cap Frames)

  • 8-head Wide Field: 200-1000 SPM (Standard); 200-900 SPM (Caps)

• Power:

  • Standard: [1P] AC100-240V

  • Optional: [3P] AC200-415V

  • Consumption: 0.4 kW (6-head, 8-head); 0.35 kW (2-head, 4-head)

  • Rating: 1.2 kVA

• Certifications:

  • ETL Listed (Safety Tested to UL Standard 1594)

Dimensions & Weight (BEKY-S1508CII/520 & 380):

• Machine Dimensions:

  • 4125L x 1245W x 1690H mm (163L x 49W x 67H inches)

• Machine Weight:

  • Net: 1071 kg (2361 lbs)

  • Crated: 1357 kg (2992 lbs)

• Shipping Crate Dimensions:

  • 171L x 45W x 72H inches

Warranty Coverage:

• 5 Years on the Main Motor

• 3 Years on Electronic Parts & Boards

• 2 Years on All Remaining Parts (excluding consumables & accessories)

Included Accessories:

• Tool Box (Basic tools, supplies, and lubricants)

• Detailed Parts Book (CD) with drawings

• Machine Manual & Quick Reference Guide (CD)

• USB Memory Stick (For embroidery design transfers)

For additional details, refer to the K-Series Multihead Sales Brochure.
