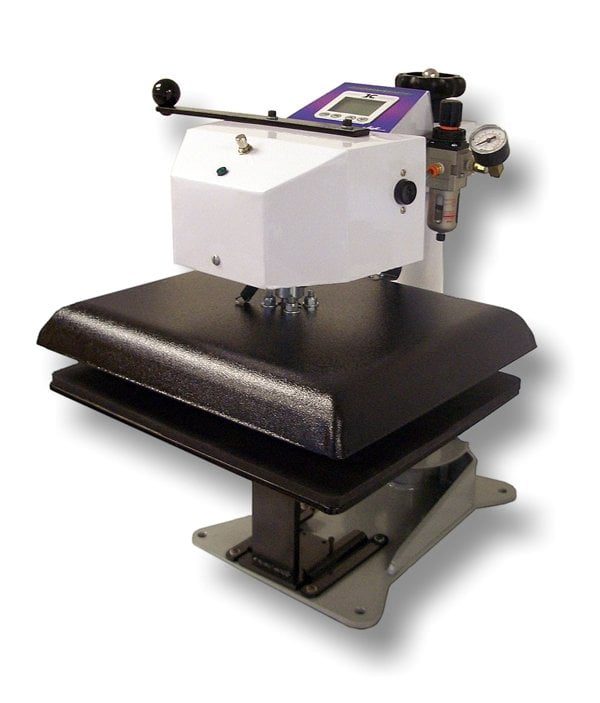

The Digital Combo DC16AP is a 14" x 16" air-operated swing-away heat press, designed for fatigue-free, high-production workflows. With push-button operation and smooth automatic pressing, this press reduces manual effort while ensuring consistent pressure and heat distribution. Featuring interchangeable platens and tables, it allows for expansion into multiple applications, including garment transfers, sublimation, embroidery patches, ceramics, mugs, and thick substrates.
Built with a solid steel welded framework, SuperCoil-Microwinding heating technology, and fully digital temperature and time controls, the DC16AP ensures repeatable, high-quality results for professional print shops.
Key Features & Benefits:
-
Automatic Air-Operated Pressing – Push-button activation eliminates manual effort, increasing productivity.
-
14" x 16" Swing-Away Platen – Provides even pressure and safer operation for a variety of materials.
-
Fully Digital Temperature Control – Adjustable from 32°F to 600°F with accurate readout (-2°F).
-
Automatic Digital Timer & Dual Pre-Press Timer – Ensures precise, repeatable results for high-volume work.
-
High-Accuracy Air Regulator & Gauge – Adjustable 20-100 PSI range for customized pressure settings.
-
Total Applied Force of 800 lbs – Handles both delicate and high-pressure applications.
-
Interchangeable Heat Platens & Tables – Expand printing capabilities with multiple platen options.
-
Solid Steel Welded Framework – Industrial durability for long-term performance.
-
SuperCoil-Microwinding™ Heater Technology – Ensures fast, even heat distribution across the platen.
-
Accommodates Materials Up to 2" Thick – Ideal for thicker substrates like plaques, tiles, and wood.
-
70 Programmable Presets – Saves commonly used settings for faster production workflow.
-
Records Number of Pressing Cycles – Tracks production for workflow monitoring.
-
PTFE-Coated 3/4" Thick Heat Platen – Prevents sticking and ensures smooth heat application.
Technical Specifications:
-
Model: DC16AP (14" x 16" Air-Operated Swing-Away Press)
-
Weight: 140 lbs
-
Power Requirements: 1500W / 12A / 120V (Available in 220V for International Use)
-
Machine Dimensions: 23" L x 23" W x 23" H
Warranty & Support:
- Lifetime Warranty on Heat Platen
- 3-Year Warranty on Digital Controller
- 1-Year Warranty on Entire Press
- FREE Lifetime Tech Support!
Why Choose the Digital Combo DC16AP?
- Hands-free air operation reduces fatigue and improves efficiency.
- Swing-away design ensures even pressure and safer material handling.
- Interchangeable platens allow for multi-use applications.
- Ideal for high-volume print shops needing automation and precision.
- Handles thick and rigid materials with up to 800 lbs of force.
Ideal For:
- Garment decorators requiring a high-speed, automated press.
- Sublimation, DTF transfers, HTV, and embroidered patch applications.
- Businesses printing on ceramic tiles, mugs, plaques, and hard surfaces.
- Shops looking for an industrial-grade, expandable heat press solution.
