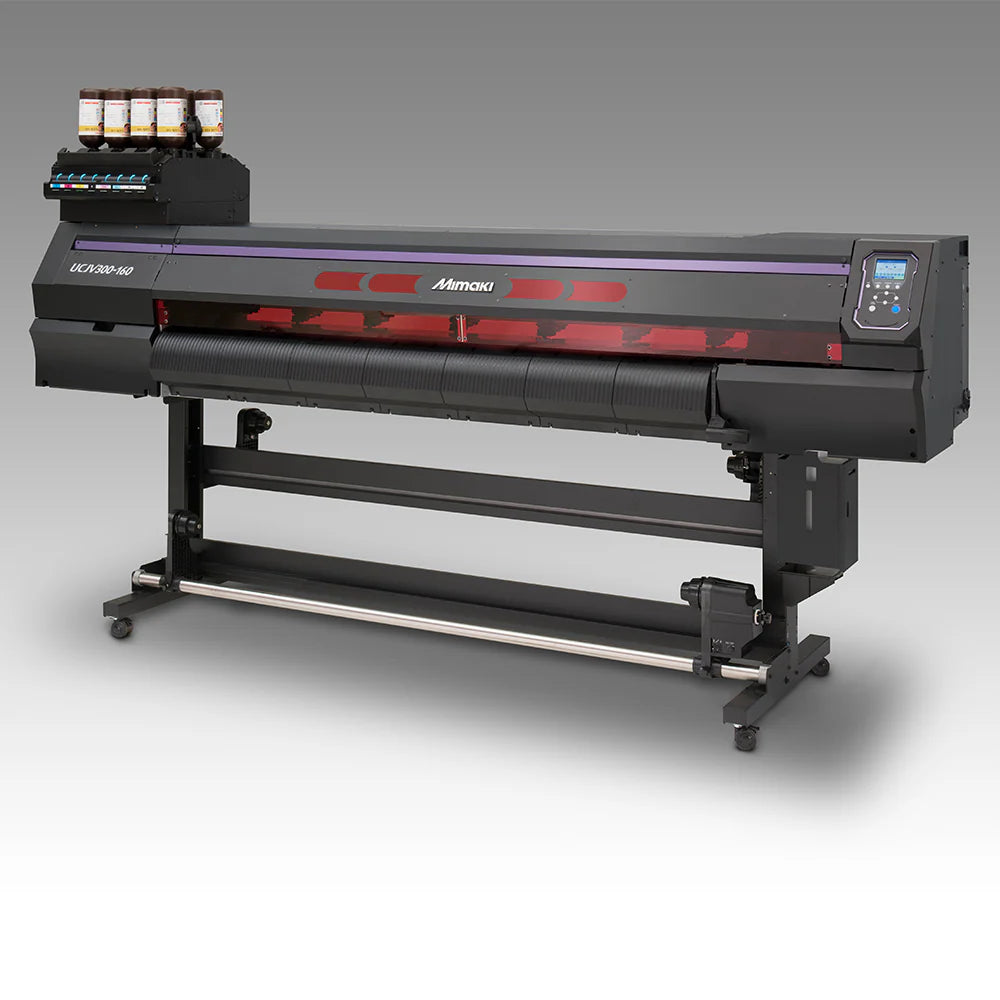

Mimaki UCJV300-160 Series 64" UV-LED Printer

The UCJV300 Series offers unparalleled flexibility and benefits to businesses of all types. The Mimaki UCJV300 print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images. Graphics are instantly cured, so you can efficiently create applications that will meet (and exceed) your customers’ needs.

Features:

• Available in 32 in, 42 in, 54 in, and 64 in sizes
• Print speeds up to 277.7 SqFt/Hr
• 2 in-line on-demand piezo printheads

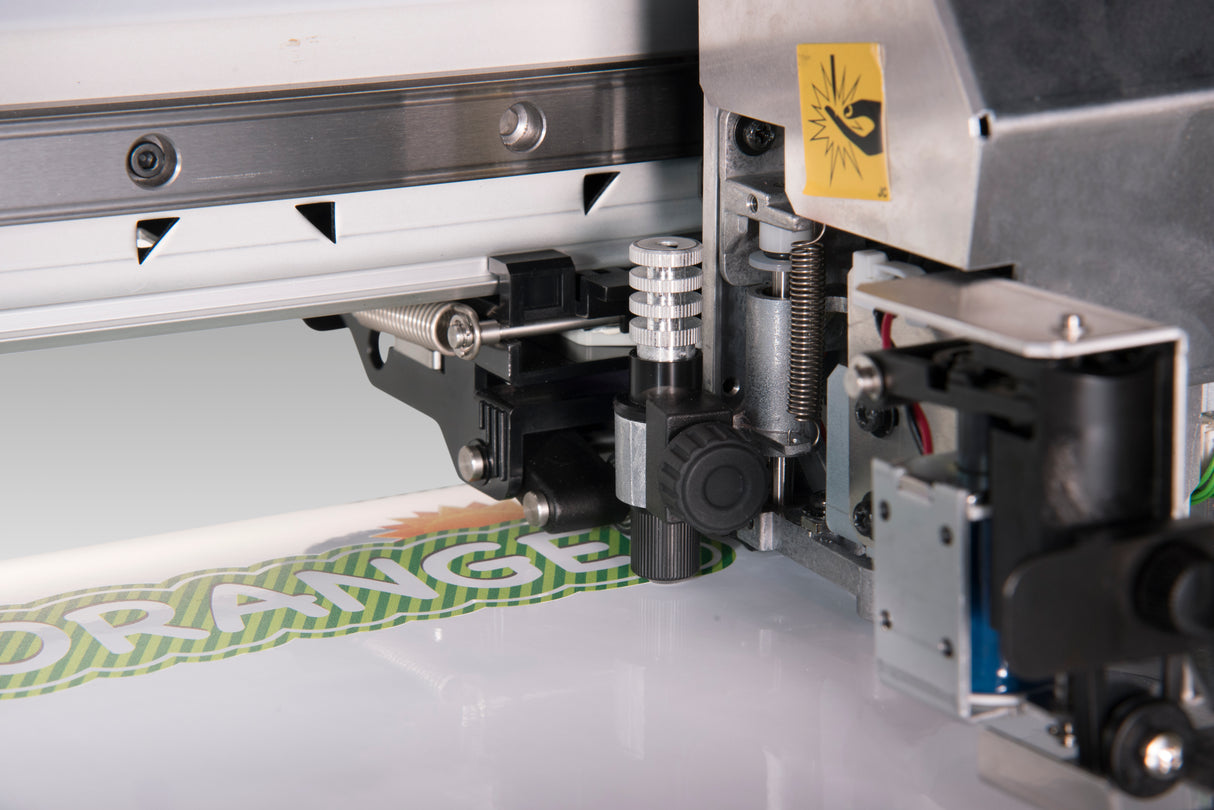

• Print and cut capability in one unit
• Highest media versatility with unparalleled scratch resistance
• Ability to pre-cut before printing to prevent film separation
• Instantly cured prints for shorter turnarounds and additional cost savings
• Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
• RIP software RasterLink6 Plus with ID cut function included
• Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
• The Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
• USB/Ethernet connectivity
• Maximum print area: 63.4 inches
• Maximum media width: 63.8 inches

Important: Mimaki printers are designed to use a single ink type at a time (e.g., eco-solvent, dye-sublimation, UV). Once an ink type has been installed, switching to another requires complete system flushing and cleaning. Always consult your user manual and follow Mimaki’s official procedures. Improper ink changes may damage the printer and void your warranty.

 UCJV300-160 Series Compatible Inks:

• LUS-170
• LUS-200
