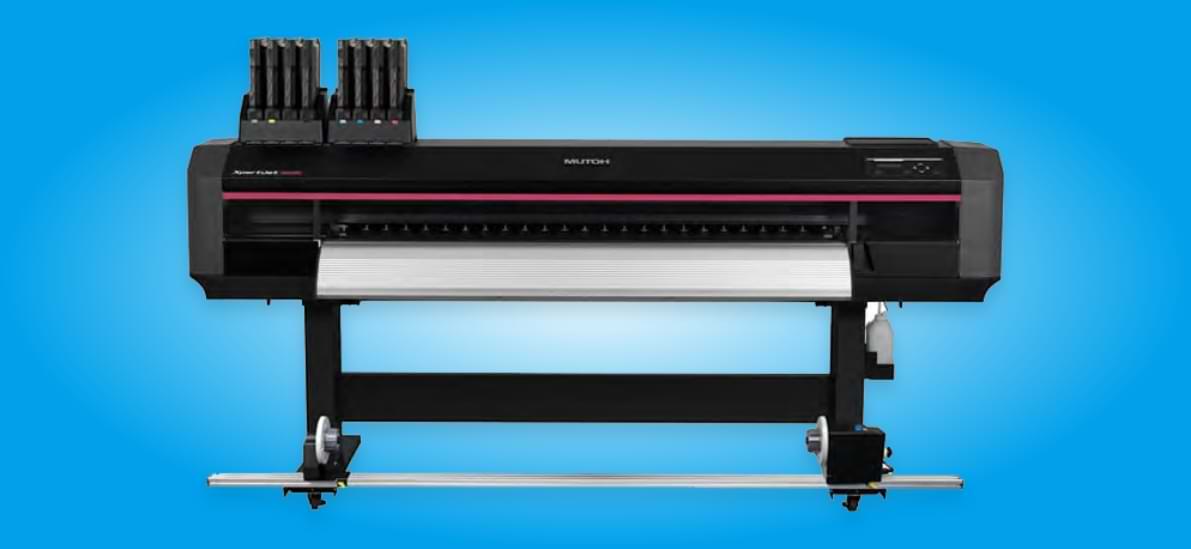

STS/MUTOH XPJ-1682D 64” DTF Printer – High-Speed, High-Quality Direct-to-Film Printing

The STS/MUTOH XPJ-1682D 64” DTF Printer is a high-performance direct-to-film (DTF) printer, engineered by MUTOH Japan for ultra-fast, high-quality textile printing. Featuring a staggered dual-head design, SAI’s Flexi DTF Pro Edition RIP software, and automatic bi-directional alignments, this state-of-the-art printer ensures smooth color gradations, superior resolution, and user-friendly operation.

Designed for high-production environments, the XPJ-1682D is paired with STS’s DTF inks, offering a wide color gamut, outstanding durability, and vibrant prints on nearly any fabric.

---

Key Features & Benefits:

✔ Staggered Dual-Head Design – Enables high-speed printing while maintaining ultra-smooth gradations and sharp detail.
✔ SAI’s Flexi DTF Pro Edition RIP Software – Seamlessly integrates with Flexi DTF Pro Editor for optimized workflow and color management.
✔ Automatic Bi-Directional Alignments – Built-in color sensor ensures precise, accurate printing with minimal manual adjustments.
✔ Advanced White Ink Circulation – Prevents clogging and sedimentation, ensuring consistent ink flow and reliability.
✔ Improved Feed Mechanism – Supports a wide range of media while enhancing accuracy and stability.
✔ Upgraded Media Flange – Allows for quick and effortless media loading and roll exchanges.
✔ Drop Master 2 Technology – Ensures consistent ink droplet placement for flawless prints at varying resolutions.
✔ MUTOH Status Monitor (MSM) – Real-time status tracking and print history monitoring for enhanced workflow efficiency.

---

Print Versatility – Works on Most Fabrics

Unlike DTG (Direct-to-Garment) printing, which requires pre-treated cotton fabrics, DTF printing eliminates fabric restrictions. The XPJ-1682D can print on:

✔ Non-Treated Cotton
✔ Silk
✔ Polyester & 50/50 Blends
✔ Denim
✔ Nylon
✔ Leather
✔ Dark & Light Textiles

---

Technical Specifications:

Printing System:

✔ Technology: Drop-on-Demand Micro Piezo Inkjet
✔ Print Heads: 2 staggered heads
✔ Max Print Resolution: 1440 x 1440 dpi
✔ Print Modes: 360, 720, 1080, 1440 dpi

Media Handling:

✔ Max Media Width: 64”
✔ Max Printable Width: 63.6”
✔ Max Media Thickness:

• Low: 0.3mm
• Mid: 1.3mm
• High: 2.8mm
  ✔ Media Capacity: Up to 66 lbs
  ✔ Media Core Compatibility: 2” & 3” Cores

Ink System:

✔ Type: DTF Water-Based Ink
✔ Ink Colors: CMYK, Lm, Lc, White (x8 slots)
✔ Ink Volume:

• 1000mL CMYK Lm Lc
• 900mL White

Software & Connectivity:

✔ RIP Software: Flexi21 DTF Pro Edition
✔ Interface: Gigabit Ethernet (1000BASE-T)

Operating Environment:

✔ Temperature: 68-89.6°F (Recommended: 71.6-86°F)
✔ Humidity: 40-50% RH (non-condensing)

Power & Dimensions:

✔ Power Requirements: AC 100-120V ±10%, 50/60Hz
✔ Power Consumption:

• Operation: 77W or less
• Standby: 52W or less
  ✔ Dimensions (WxDxH): 108.26” x 35.23” x 56.22”
  ✔ Weight: Body: 321.87 lbs | Stand: 70.54 lbs

---

Why Choose the STS/MUTOH XPJ-1682D 64” DTF Printer?

The STS/MUTOH XPJ-1682D is a high-speed, precision-driven DTF printing solution, offering unmatched print quality, versatility, and efficiency. Whether printing sportswear, fashion apparel, promotional products, or custom graphics, this powerful printer ensures vibrant, stretch-resistant, and durable prints on a wide range of fabrics.
