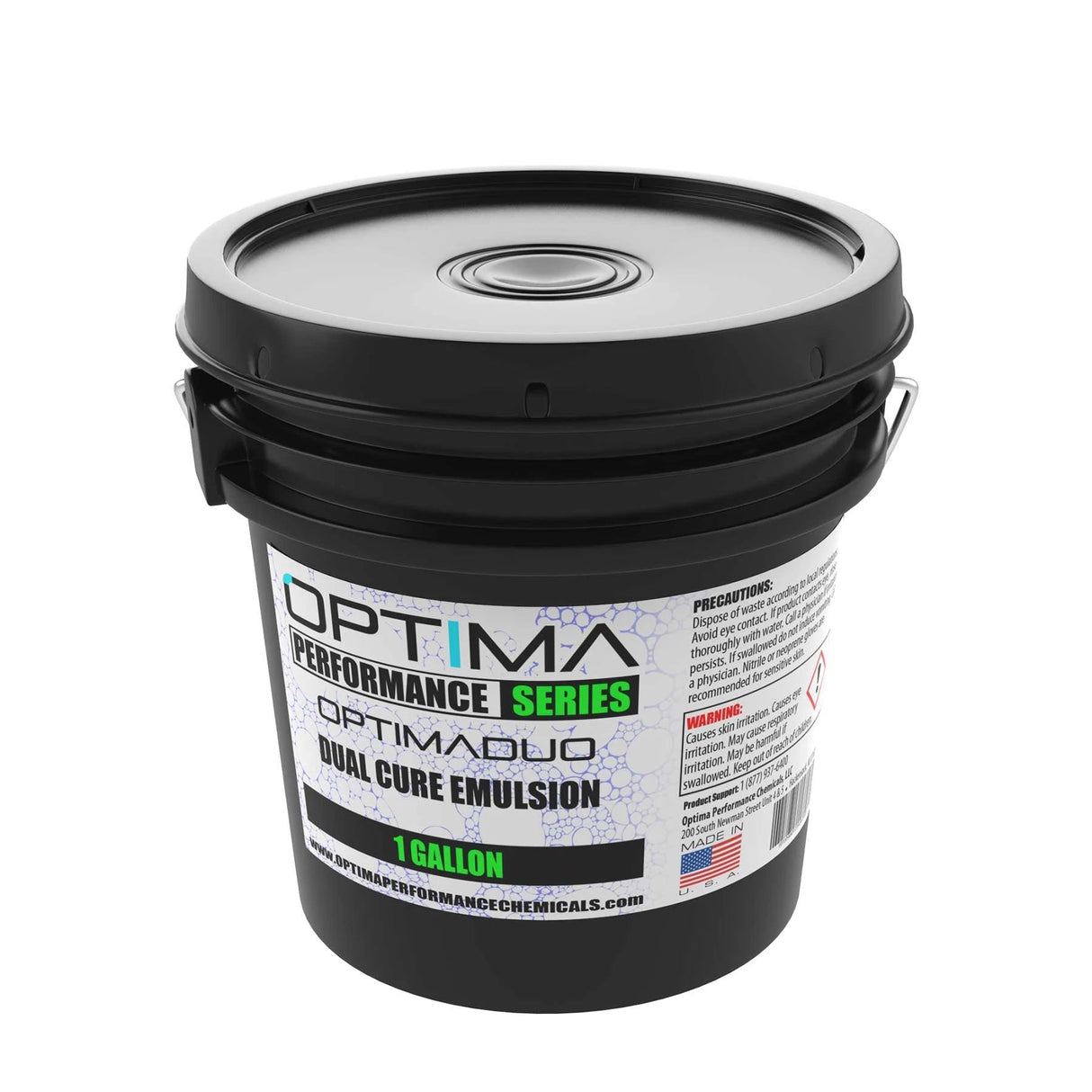

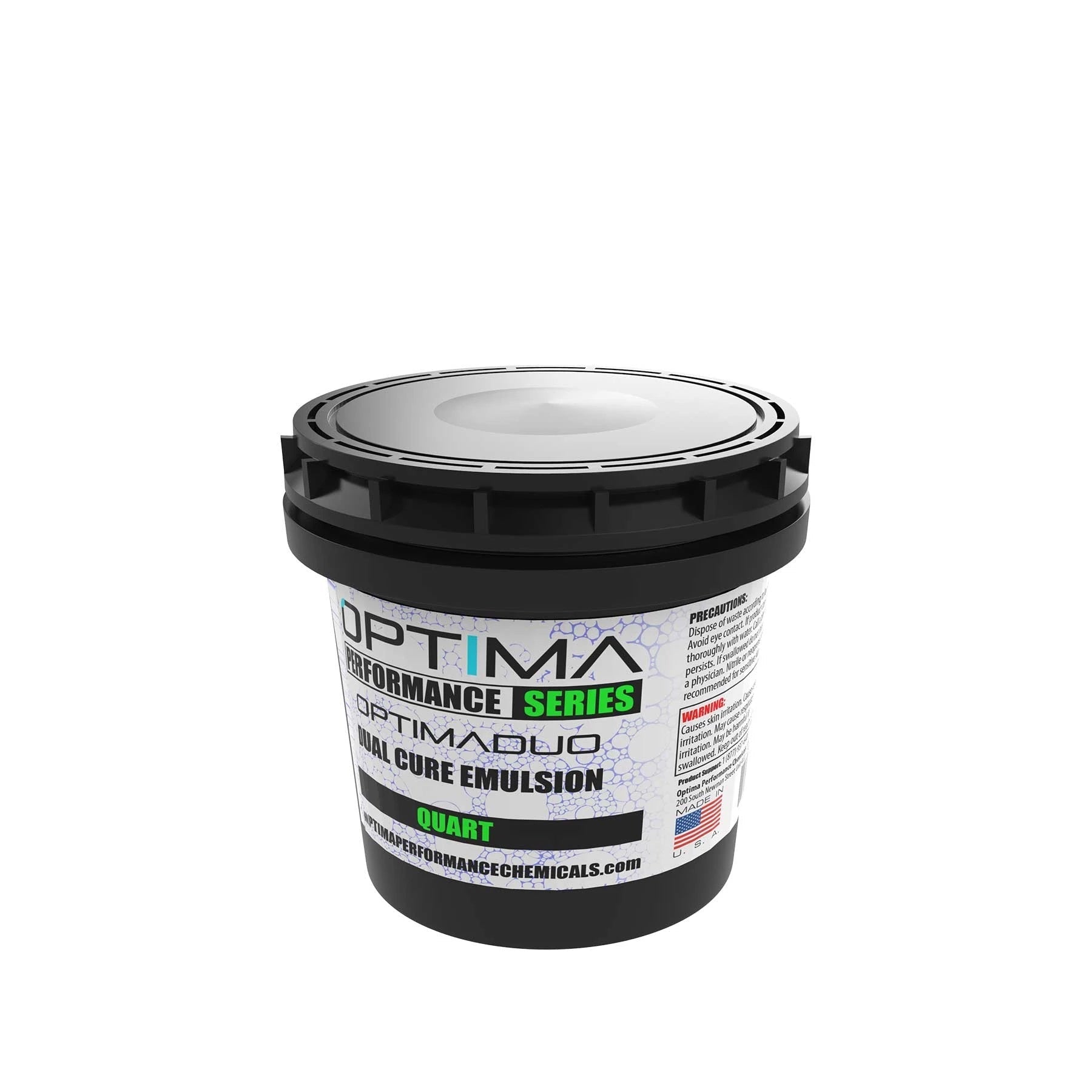

OPTI Duo Cure Emulsion (Blue) – Two-Part Diazo-Sensitized Emulsion

Optima Duo Cure Emulsion is a premium dual-cure direct emulsion designed for industrial and display graphics, compact disc printing, and half-tone applications. This high-performance emulsion is engineered for UV-cured, plastisol, and solvent-based inks, providing exceptional print definition on any mesh count.

With a 42% solids content, Optima Duo Cure delivers a low-friction stencil surface, improving durability when used with abrasive inks. Unlike traditional dual-cure emulsions, it dries tack-free, ensuring smooth, precise printing.

Key Features & Benefits:

• Versatile Ink Compatibility – Ideal for UV-cured, plastisol, and solvent-based inks.
• High Solids Content (42%) – Suitable for a wide range of mesh counts.
• Excellent Print Definition – Provides sharp, precise image reproduction.
• Low-Friction Stencil Surface – Enhances durability with abrasive inks.
• Tack-Free Drying – Eliminates stickiness, improving handling and application.

Applications:

• General Industrial & Display Graphics
• Compact Disc Printing
• Half-Tone Printing

Directions for Use:

Handling:

• Use under yellow safelight or low-wattage tungsten lighting.
• Avoid exposure to daylight, quartz/halogen lamps, cool white fluorescent lamps, or discharge lamps.

Sensitizing & Mixing:

1. Prepare Diazo as per bottle instructions.
2. Add the entire contents to the emulsion and mix thoroughly until smooth.
3. Label the sensitized emulsion with the date and let it sit for a few hours to allow air bubbles to escape.
4. Store in cool conditions and use within one month for best results.

Mesh Preparation & Degreasing:

• For new mesh: Use SaatiChem Direct Prep 1 to degrease and abrade for optimal stencil adhesion.
• For further applications: Degrease thoroughly with SaatiChem Direct Prep 2 before coating.

Coating Instructions:

• Apply 1-2 coats on the substrate side, followed by 1-2 coats on the squeegee side.
• For thicker stencils, apply additional coats to the squeegee side before drying.
• For higher-quality stencils, apply extra coats to the substrate side after initial coats have dried.

Drying & Storage:

• Dry coated screens in a dust-free, dark, or yellow light area at a max temperature of 104°F (40°C).
• Store with the substrate side facing down for optimal stencil quality.
• Coated screens should be stored in a dust-free, dry, safelight environment.

Storage & Shelf Life:

• Unopened containers maintain original properties for one year from the date of production when stored in cool conditions.

Safety & Handling Information:

• Use PPE: Wear gloves and eye protection to avoid skin and eye contact.
• Ventilation Requirements: Work in a well-ventilated area to prevent exposure to emulsion fumes.
• First Aid Measures:
  • Skin Contact: Wash thoroughly with soap and water.
  • Eye Contact: Rinse immediately with clean water for at least 15 minutes and seek medical attention if irritation persists.
  • Inhalation: Move to fresh air. Seek medical assistance if breathing difficulties occur.
• Disposal: Dispose of unused emulsion according to local environmental regulations.

Why Choose Optima Duo Cure Emulsion?

Optima Duo Cure is a versatile, high-performance emulsion that delivers outstanding print definition, tack-free drying, and exceptional stencil durability. Its broad ink compatibility, high solids content, and easy reclaiming properties make it the perfect choice for industrial, half-tone, and display graphics applications.
