High-Efficiency Curing for Water-Based, Discharge, and DTG Printing

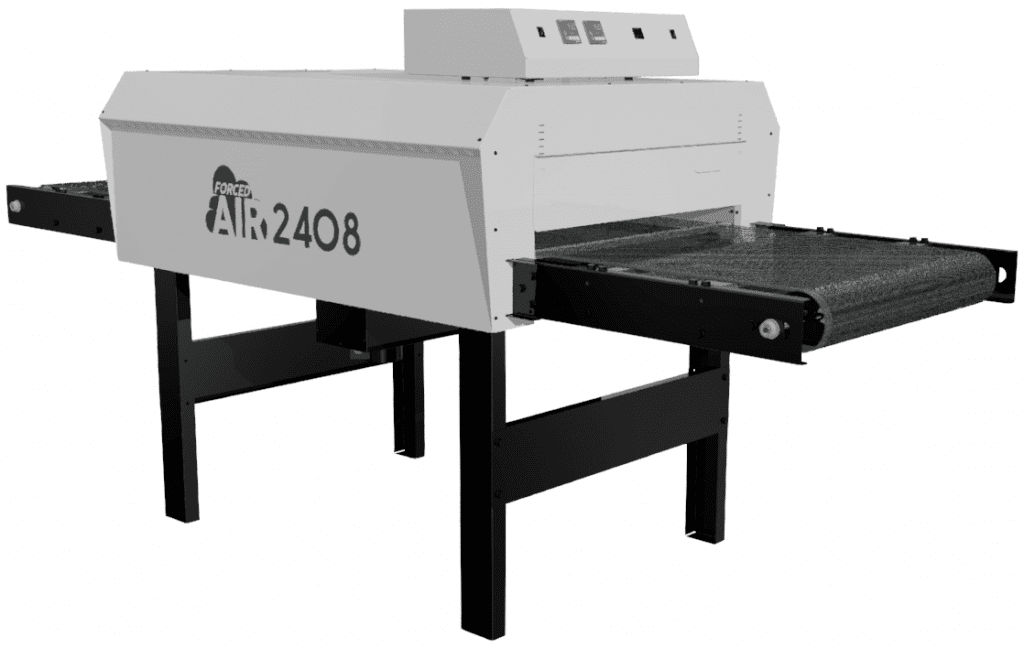

The BBC Air Conveyor Series Dryer w/Forced Air is engineered to optimize curing performance for water-based, discharge, plastisol, and DTG inks. Standard infrared dryers struggle with water-based inks due to moisture retention, leading to longer dwell times or multiple curing cycles. BBC solves this issue with a powerful forced-air system that efficiently drives moisture out, allowing for faster, more effective curing while maintaining consistent temperatures.
Designed for mid-to-high-volume screen printing operations, this 10-foot-long dryer features a 36-inch belt width, 12,000 watts of heating power, and precision temperature control within 5°F, ensuring reliable results across various ink types. Its powered exhaust system actively removes steam, preventing heat buildup and improving overall curing efficiency.
Key Features & Benefits:
-
Optimized for Water-Based & Discharge Inks – Forced-air system accelerates evaporation, preventing ink from becoming overcooked while ensuring proper curing.
-
High-Capacity Production – Cures approximately 700 plastisol prints, 380 water-based prints, or 130 DTG prints per hour.
-
12,000 Watts of Heating Power – Delivers consistent, even heat for all ink types.
-
36-Inch Belt Width – Ideal for high-production environments requiring wide conveyor capacity.
-
Adjustable Conveyor Lengths – Customizable entry/exit extensions improve workflow flexibility.
-
Precision Temperature Control – Maintains heat within ±5°F for uniform curing without scorching or under-curing.
-
Powered Exhaust System – Removes steam and prevents overheating, ensuring consistent airflow inside the chamber.
-
Cool Outer Surface Area – Enhanced insulation prevents external surfaces from getting too hot, improving shop safety.
-
Heavy-Duty Construction – Built for continuous, high-output production.
Technical Specifications:
-
Model No.: BA-364-4-2
-
Length: 120 inches
-
Width: 46 inches
-
Chamber Height: 44.25 inches
-
Belt Width: 36 inches
-
Belt Height: 31 inches
-
Entry / Exit Length: 48 inches / 24 inches (conveyor extension available)
-
Belt Drive Power: 240V
-
Oven Chamber Length: 51.7 inches
-
Capacity (Approximate per Hour):
-
Plastisol: 700 prints
-
Water-Based: 380 prints
-
DTG: 130 prints
-
Heater Wattage: 12,000W
-
Power Requirements:
- 240V – 50A / 208V – 44A (Single Phase)
- 1P: 240V – 29A / 208V – 22A
- 3P: Wired Directly to Box (No Plug)
-
Shipping Weight: 650 lbs.
- Three-Year Warranty on Heating Elements
Why Choose the BBC Air Conveyor Series Dryer?
-
Faster and more efficient curing for water-based and discharge inks.
-
Consistent temperature control ensures even curing with minimal waste.
-
Large capacity belt width improves production speed and efficiency.
-
Powered exhaust eliminates excess moisture, improving ink performance.
-
Heavy-duty, high-output system designed for long-term reliability.
Ideal For:
- Mid-to-high-volume screen printing shops
- Curing water-based, discharge, plastisol, and DTG inks
- Large-format conveyor drying with high production demands
- Printers looking for a cost-effective way to scale their water-based curing process
