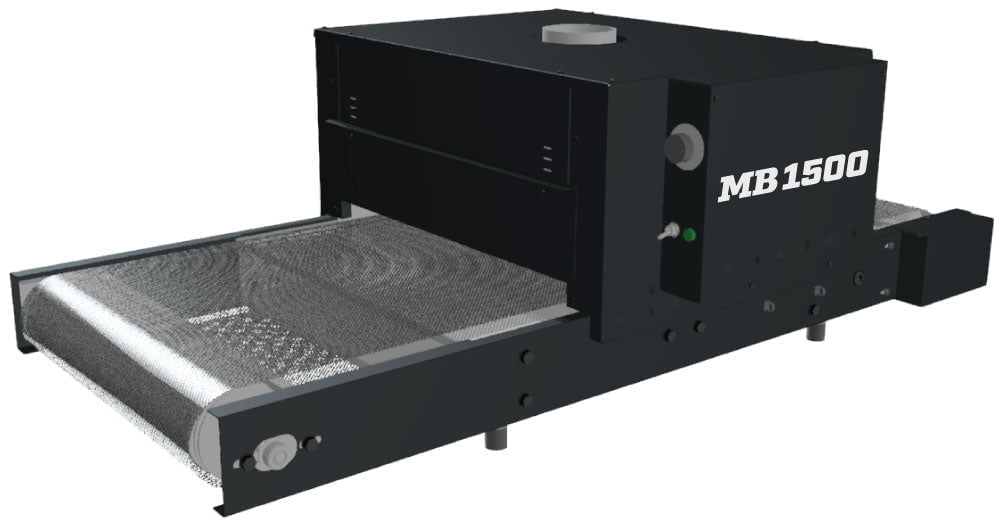

The BBC MB Series Table Top Conveyor Dryers are engineered to revolutionize your curing process with cutting-edge infrared technology and unmatched efficiency. Designed by BBC Industries, these dryers utilize proprietary infrared panels to deliver even, consistent heat distribution, ensuring superior curing for all ink types, including plastisol, water-based, and discharge inks.
Perfect for small shops, mobile printing operations, and growing businesses, the MB Series offers plug-and-play convenience, compact portability, and precise curing control—all in a space-saving design.
Key Features & Benefits:
-
Advanced Infrared Heating – BBC’s proprietary infrared panels provide even heat across the belt width, eliminating cold spots and ensuring uniform curing.
-
Plug-and-Play Convenience – Operates with a standard 15A plug, requiring no special outlets or adaptors for quick setup.
-
TruTrak Belt Tracking System – Eliminates belt misalignment issues for hassle-free operation and uninterrupted production.
-
Compact and Portable – Ideal for small shops or on-the-go printing, with a space-saving footprint that delivers full edge-to-edge heat coverage.
-
Built-in Speed Control – Adjustable conveyor speed dial for precise curing control, ensuring optimal print results every time.
Why Choose the BBC MB Series?
- Designed for efficiency and ease of use, perfect for small to medium-sized production.
- No belt tracking issues thanks to BBC’s exclusive TruTrak system.
- Reliable infrared heat ensures even curing for high-quality prints.
- Compact size allows for maximum performance in limited space.
-
Plug-and-play setup saves time and simplifies installation.
Ideal For:
- Small screen printing businesses and startup shops
- Mobile and on-site printing operations
- Curing plastisol, water-based, and discharge inks
- Printers with limited space needing a high-performance drying solution
- Length: 48”
- Width: 26”
- Belt Width: 18”
- Belt Drive Power: Single Point Power
- Number of Elements: 1
- Heater dimensions: 14”x18”
- Chamber Length: 18”
- Chamber Height: 3”
- Entry/Exit Length: Adjustable from 12”-18”
- Wattage: 1440
- Voltage: 120
- Amps: 12.5
- Plug Type: Nema 5-15P (standard household plug)
- Ships in three boxes
