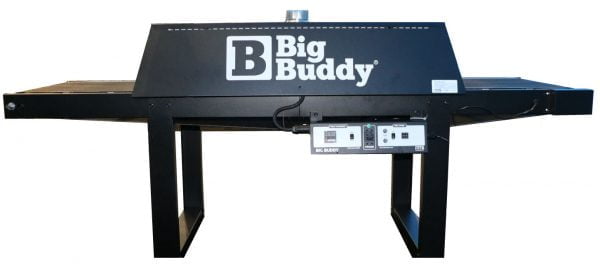

The BBC Big Buddy Series Conveyor Dryer is a compact, lightweight, and high-performance drying system designed for small to mid-sized shops needing increased production capacity. Equipped with BBC’s Black Body infrared heating technology, this dryer ensures even edge-to-edge heat distribution, eliminating hot spots and preventing under- or over-curing.
With its two finely tuned heating zones, the Big Buddy quickly reaches curing temperatures and holds them consistently, improving wash-fastness for all ink types, including plastisol and water-based inks. Its floating belt tracking system ensures smooth operation with minimal maintenance, providing years of trouble-free performance.
Key Features & Benefits:
-
Dual-Zone Infrared Heating – Custom coiled long-wave infrared elements create a heat plateau for superior curing.
-
Even Heat Distribution – Edge-to-edge heat uniformity prevents temperature imbalances across the belt.
-
Auto-Plateauing Technology – Ensures consistent curing temperatures, reducing the need for multiple passes.
-
No Airflow Required for Water-Based Inks – Cures plastisol and water-based inks efficiently without additional airflow.
-
Floating Belt Tracking Guide – Keeps the belt aligned for smooth operation with minimal adjustments.
-
Compact & Lightweight Design – Fits into small shops while providing high-capacity production.
-
Easy Assembly & No Crating Charge – Ships in four cartons on a skid for quick setup.
Technical Specifications:
-
Model Number: BB17-6500
-
Overall Length: 8 ft.
-
Chamber Length: 48 inches
-
Belt Width: 24 inches
-
Belt Height: 33 inches
-
Belt Speed: 1-20 feet per minute
-
Garment Capacity: 300+ garments per hour
-
Heater Dimensions: (2) 18" x 24"
-
Heater Wattage: 6500W
-
Heater Power Required: 240V AC / 25A
-
Heater Plug Type: NEMA L6-30P
-
Belt Drive Power Required: 120V AC
-
Shipping Weight: Approx. 480 lbs.
-
Heat Control: Solid-State
Why Choose the BBC Big Buddy Conveyor Dryer?
- Increases production capacity without taking up excess space.
- Ensures fast, even curing for plastisol, water-based, and discharge inks.
- No need for multiple passes—cures water-based inks without forced airflow.
- Smooth belt operation with a floating tracking guide for low-maintenance use.
- Quick, easy assembly with no crating charge for shipping.
Ideal For:
- Small to mid-sized screen printing businesses looking to scale production.
- Shops curing plastisol, water-based, and discharge inks efficiently.
- Businesses seeking a cost-effective yet high-performance conveyor dryer.
- Printers looking to eliminate the need for multiple passes with water-based inks.
