The Digital Knight DK16 Clamshell Heat Press is a 14" x 16" mid-sized, business-grade heat press designed for high-pressure applications, portability, and ease of use. As one of the most affordable yet heavy-duty digital heat presses, it is perfect for small businesses, startups, and professional print shops.

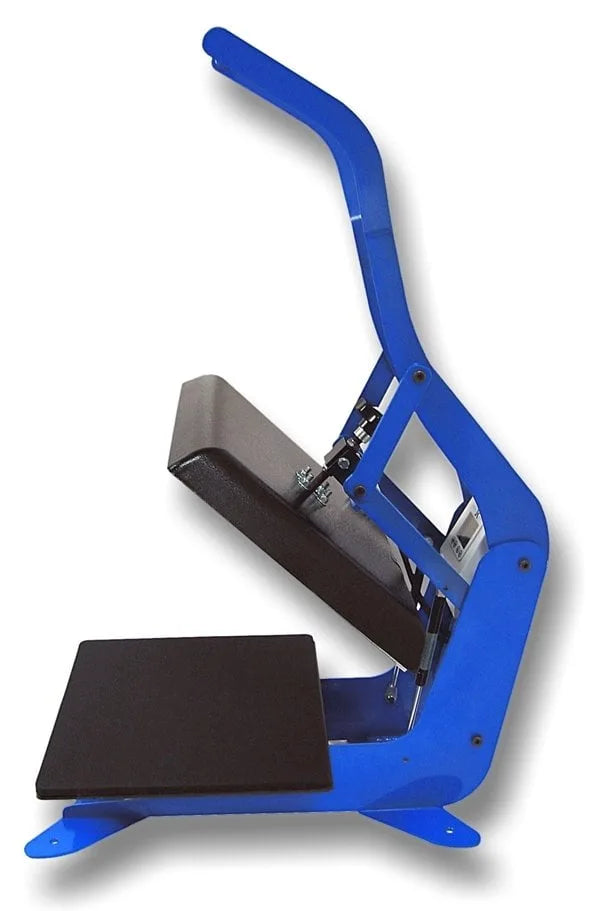

With a wide-opening clamshell design, the DK16 allows for full access to the lower platen, making it easy to slide garments over the table for precise placement. Unlike traditional clamshells, the heat platen raises above and away from the bottom table, providing better accessibility for garment loading.
For increased automation, the DK16 can be upgraded with the "Pop-Up" Auto-Release feature, converting it into a semi-automatic heat press for faster production.
Key Features & Benefits:
-
Fully Digital Temperature Control – Adjustable from 32°F to 600°F with temperature accuracy of -2°F.
-
Automatic Digital Timer & Dual Pre-Press Timer – Ensures precise and repeatable heat applications.
-
Digital Pressure Bar Graph – Displays real-time pressure feedback for optimal transfer quality.
-
Super-Portable Lightweight Design – Weighs only 83 lbs, making it easy to move and store.
-
Extreme High-Pressure Capability – Provides consistent, heavy-duty pressing for all substrates.
-
Hardened High-Strength Pivot Points – Ensures long-term durability and even pressure distribution.
-
Interchangeable Bottom Tables – Adaptable to smaller pressing areas for increased versatility.
-
Self-Lifting Gas Spring & Wide Opening – Makes loading garments easier and faster.
-
SuperCoil-Microwinding™ Heater Technology – Guarantees even heat distribution across the platen.
-
User-Selectable End-of-Cycle Alarms – Alerts the operator when pressing is complete.
-
Tracks Pressing Cycle Counts – Records total press cycles for workflow monitoring.
-
PTFE-Coated 3/4" Thick Heat Platen – Prevents sticking and ensures smooth transfers.
Upgrade Options for Enhanced Productivity:
-
"Pop-Up" Auto-Release Upgrade – Converts the DK16 into a semi-automatic heat press, improving production speed.
Technical Specifications:
-
Model: DK16 (14" x 16" Clamshell Press)
-
Weight: 83 lbs
-
Power Requirements: 1500W / 12A / 110V (Available in 220V for International Use)
-
Machine Dimensions: 32" L x 17" W x 16" H
Warranty & Support:
- Lifetime Warranty on Heat Platen
- 3-Year Warranty on Digital Controller
- 1-Year Warranty on Entire Press
- FREE Lifetime Tech Support!
Why Choose the Digital Knight DK16?
- Affordable and reliable heat press for growing businesses.
- Compact and lightweight for easy portability and small workspaces.
- Designed for high-pressure applications with a solid steel framework.
- Upgrade options allow for automation and faster production.
- Wide-opening design ensures better garment placement and user comfort.
Ideal For:
- Startups, small businesses, and professional heat transfer applications.
- Sublimation, DTF transfers, HTV, and specialty heat printing.
- Shops needing a durable and upgradeable clamshell press.
- Businesses with limited space looking for a compact yet powerful press.
