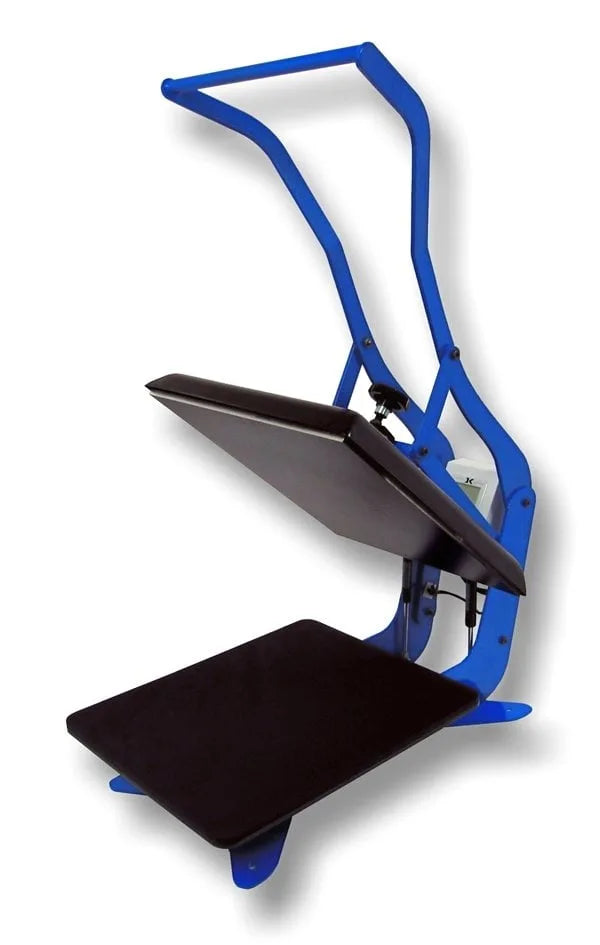

The Digital Knight DK20A 16" x 20" Auto Clamshell Heat Press is a high-performance, semi-automatic heat press designed for efficiency, durability, and precision. Combining the power of a manual clamshell press with an auto-release "Pop-Up" mechanism, this press streamlines operations by automatically opening at the end of the timing cycle, reducing operator fatigue and maximizing productivity.
Featuring a unique Hover capability, the DK20A allows for curing processes without direct contact, making it ideal for specialty applications like pre-curing direct-to-garment (DTG) prints. The wide-opening clamshell design provides unmatched accessibility, while the interchangeable bottom tables offer versatility for different substrate sizes.
Key Features & Benefits:
-
Auto-Release "Pop-Up" Mechanism – Automatically opens at the end of the press cycle, reducing fatigue and increasing efficiency.
-
Unique Hover Capability – Allows the platen to hover over the substrate for pre-curing applications, perfect for DTG and specialty printing.
-
Fully Digital Temperature Control – Adjustable from 32°F to 600°F, ensuring precise heat settings for various materials.
-
Automatic Digital Timer & Dual Pre-Press Timer – Ensures accurate, repeatable press cycles for consistent results.
-
Digital Pressure Bar Graph – Provides real-time pressure feedback, improving print consistency.
-
All-Thread™ Table Loading Design – Allows for easy garment positioning and quick workflow adjustments.
-
Interchangeable Bottom Tables – Expand versatility for different heat transfer applications.
-
Wide Opening Clamshell Design – Provides better access to the lower table for easy layout and preparation.
-
SuperCoil-Microwinding™ Heater Technology – Delivers even heat distribution across the platen, ensuring consistent press quality.
-
Lightweight & Portable Design – Weighing just 103 lbs, making it easy to move and position in limited-space environments.
-
Built for Durability – Solid steel framework with hardened high-strength pivot points ensures long-term reliability.
Technical Specifications:
-
Model: DK20A (16" x 20" Auto Clamshell Press)
-
Weight: 103 lbs
-
Power Requirements: 1800W / 15A / 110V (Available in 220V for International Use)
-
Machine Dimensions: 36" L x 17" W x 16" H
Warranty & Support:
- Lifetime Warranty on Heat Platen
- 5-Year Warranty on Frame
- 3-Year Warranty on Digital Controller
- 1-Year Warranty on Entire Press
- FREE Lifetime Tech Support!
Why Choose the Digital Knight DK20A?
- Eliminates manual effort with automatic opening, reducing strain and operator fatigue.
- Hover function expands capabilities for curing DTG prints and other non-contact applications.
- Digital precision ensures exact temperature, time, and pressure control for professional results.
- Durable construction designed for long-term, high-production use.
- Interchangeable bottom tables provide versatility for different transfer applications.
Ideal For:
- Garment decorators and heat transfer professionals needing an automated press.
- High-volume print shops looking to streamline workflow and efficiency.
- Sublimation, DTF transfers, HTV, and direct-to-garment (DTG) pre-curing.
- Shops requiring a reliable, high-pressure clamshell press with an automatic release function.
