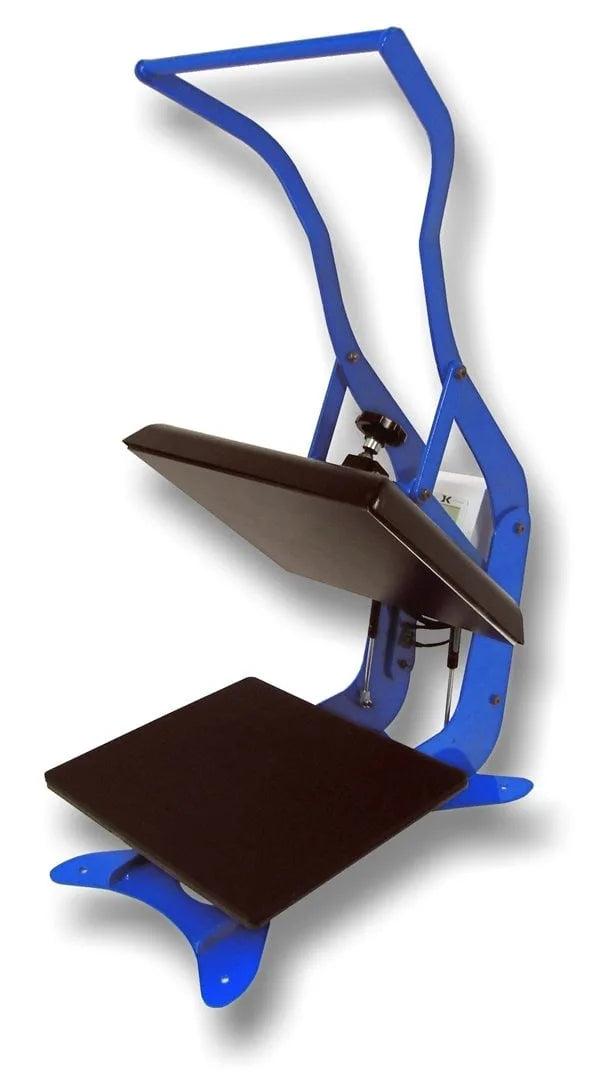

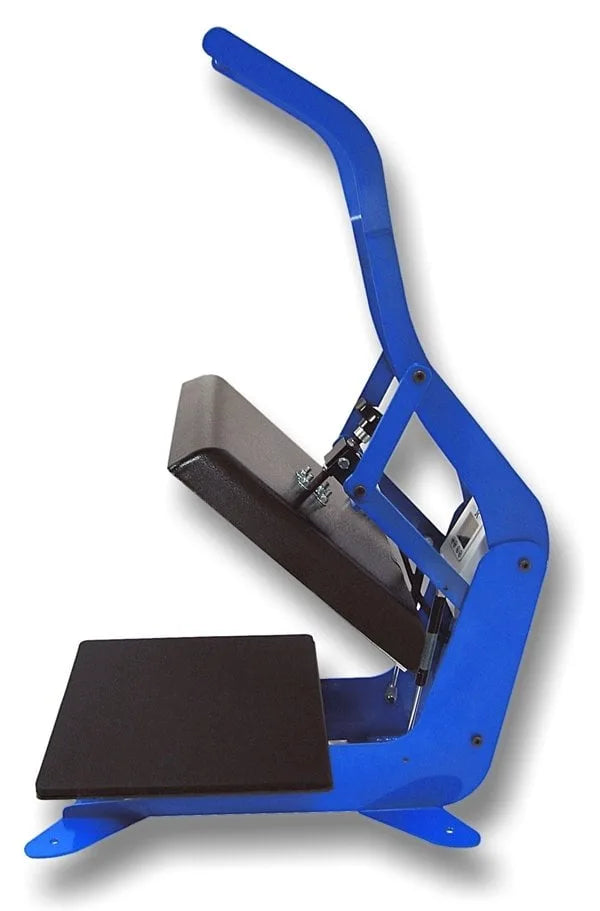

The Digital Knight DK16A Auto Clamshell Heat Press is a 14" x 16" semi-automatic heat press that combines the power of a manual clamshell with innovative automation features. Equipped with the Auto-Release "Pop-Up" function, this press automatically opens at the end of the digital timing cycle, reducing operator fatigue and improving efficiency for high-production environments.
Additionally, the "Hover" feature allows the press to remain slightly open, making it ideal for curing applications without fully clamping the material—perfect for DTG pre-treatment, specialty printing, and sublimation processes.
Designed with a wide-opening frame, the DK16A ensures full access to the lower platen, making garment placement fast and easy. Its solid steel construction, SuperCoil-Microwinding heating technology, and digital controls provide even heat distribution, high-pressure capability, and consistent performance for a variety of heat transfer applications.
Key Features & Benefits:
-
Auto-Release "Pop-Up" Function – Automatically opens at the end of the cycle, improving efficiency and reducing fatigue.
-
Hover Mode for Curing – Allows the platen to hover over garments for curing without full contact.
-
Fully Digital Temperature Control – Adjustable from 32°F to 600°F with temperature readout accuracy of -2°F.
-
Automatic Digital Timer & Dual Pre-Press Timer – Ensures precise, repeatable press cycles.
-
Digital Pressure Bar Graph – Displays real-time pressure readings, optimizing consistency.
-
Super-Portability & Lightweight Design – Weighs only 83 lbs, making it easy to transport and position.
-
Extreme High-Pressure Capability – Suitable for sublimation, HTV, DTF, and specialty applications.
-
Hardened High-Strength Pivot Points – Ensures smooth operation and long-term durability.
-
Interchangeable Bottom Tables – Expand versatility for different material sizes and applications.
-
Self-Lifting Gas Spring & Wide Opening – Provides effortless operation and easy garment placement.
-
SuperCoil-Microwinding™ Heater Technology – Guarantees fast, even heat distribution across the platen.
-
PTFE-Coated 3/4" Thick Heat Platen – Prevents sticking and ensures smooth heat application.
-
User-Selectable End-of-Cycle Alarms – Alerts operator when the press cycle is complete.
-
Tracks Pressing Cycle Counts – Records total presses for workflow monitoring.
Technical Specifications:
-
Model: DK16A (14" x 16" Auto Clamshell Press)
-
Weight: 83 lbs
-
Power Requirements: 1500W / 12A / 110V (Available in 220V for International Use)
-
Machine Dimensions: 32" L x 17" W x 16" H
Warranty & Support:
- Lifetime Warranty on Heat Platen
- 3-Year Warranty on Digital Controller
- 1-Year Warranty on Entire Press
- FREE Lifetime Tech Support!
Why Choose the Digital Knight DK16A?
- Hands-free automatic opening enhances workflow and productivity.
- Hover function expands capabilities for curing DTG prints and sublimation applications.
- Compact yet powerful design ensures maximum performance in limited spaces.
- High-pressure capability delivers crisp, professional-quality results.
- Wide-opening clamshell design provides superior access to the lower platen.
Ideal For:
- Garment decorators and heat transfer professionals needing an automatic press.
- DTF, sublimation, HTV, and specialty heat applications.
- Shops looking for a space-saving, high-performance press.
- Businesses wanting a semi-automatic press with auto-release functionality.
