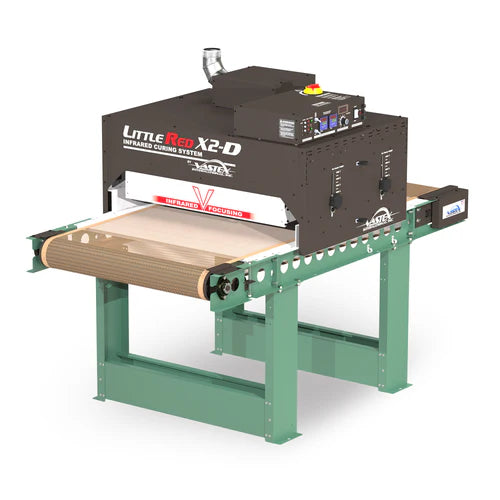

he Vastex Little Red X2-D Dryer is a highly efficient and cost-effective drying system designed for DTG, plastisol, water-based, and discharge inks. Featuring innovative heat mapping technology, it ensures faster curing times, making it an ideal choice for small to mid-sized print shops looking for a high-performance, space-saving drying solution.
Key Features of the Little Red X2-D:
-
Advanced Pre-Heating Zone: Rapidly raises ink temperatures above 300°F (149°C) within the first few inches of conveyor travel.
-
Dual Zone Heat Controls: Two adjustable infrared heaters for consistent curing across all ink types.
-
High-Performance Exhaust System: Efficiently removes moisture and air contaminants, cooling the chamber and controls.
-
Expandable Design: Can be upgraded with additional heating chambers and conveyor belt extensions to accommodate business growth.
-
Industry-Leading Durability: Vastex infrared heaters include a 15-year warranty, ensuring long-term reliability.
Specifications & Output:
| Model |
Belt Width |
Heaters |
Wattage |
Plastisol Output |
Water-Based Output |
DTG White Ink Output |
| X2D-30 |
30” (76 cm) |
Two 24” (61 cm) |
6300W @ 240V |
240+ garments/hr |
90+ garments/hr |
26 garments/hr (3.5 min dwell time) |
| X2D-54 |
54” (137 cm) |
Two 48” (122 cm) |
12,600W @ 240V |
480+ garments/hr |
180+ garments/hr |
52 garments/hr (3.5 min dwell time) |
With a 66-inch (168 cm) conveyor length, adjustable belt speeds, and low-friction belt alignment, the X2-D delivers precise dwell times from 35 seconds to four minutes.
Vastex Little Red X3-D Dryer – High-Speed Curing for Increased Production
The Vastex Little Red X3-D is a multi-purpose infrared dryer designed to handle high-volume DTG, plastisol, water-based, and discharge printing. Equipped with an additional heater compared to the X2-D, the X3-D delivers even greater curing capacity and efficiency.
Key Features of the Little Red X3-D:
-
Triple Infrared Heating System: Three 24-inch (61 cm) infrared heaters for superior curing speed and efficiency.
-
High-Powered Pre-Heating Zone: Rapidly boosts ink temperatures beyond 300°F (149°C) for faster, more efficient curing.
-
Optimized Exhaust System: 380 CFM targeted exhaust rapidly removes moisture and air contaminants for cleaner prints.
-
Expandable & Adjustable: Belt speed and heating chamber length can be adjusted to meet production needs.
-
Heavy-Duty, Long-Lasting Design: Backed by Vastex’s 15-year warranty on heating elements. Multi-Purpose Infrared Dryers
Specifications & Output:
| Model |
Belt Width |
Heaters |
Wattage |
Plastisol Output |
Water-Based Output |
DTG White Ink Output |
| X3D-30 |
30” (76.2 cm) |
Three 24” (61 cm) |
8300W @ 240V |
360+ garments/hr |
100+ garments/hr |
50+ garments/hr |
With an 88-inch (224 cm) conveyor belt length and a 41-inch (104 cm) heating chamber, the X3-D maximizes curing efficiency and ensures a consistent finish across all ink types.
Why Choose Vastex Little Red Infrared Dryers?
-
Industry-Leading Infrared Technology – Provides medium-wavelength, high-density heat for uniform curing without cold spots.
-
Optimized for DTG, Plastisol, and Water-Based Inks – Capable of curing all screen printing and digital printing inks efficiently.
-
Expandable & Upgradeable – Fully scalable with modular heating chambers and belt extensions to grow with your business.
-
Built for High-Production – The Little Red X3-D offers 50% more curing capacity than conventional dryers, making it ideal for high-volume shops.
-
15-Year Heater Warranty – Ensuring long-term reliability and peace of mind.
Invest in the Ultimate Drying Solution for Your Screen Printing & DTG Business
Whether you need a compact, high-performance dryer like the X2-D or a high-output industrial-grade system like the X3-D, Vastex delivers unparalleled quality, durability, and efficiency for professional print shops.
Upgrade your curing process today with the Vastex Little Red X2-D or X3-D!
