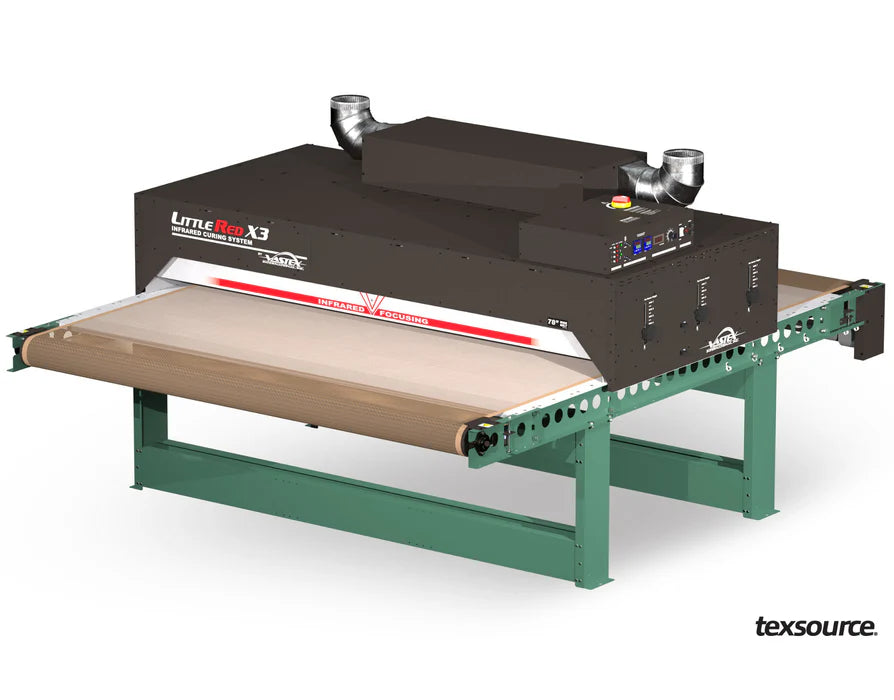

he all-new multi-purpose LittleRed X3-D infrared dryer cures direct-to-garment (DTG) printed textiles as well as plastisol, water-based and discharge-printed garments at higher rates than possible with conventional dryer designs.
It features a high-powered pre-heating zone that rockets ink temperatures past 300°F (149ºC) within the first several inches of conveyor travel, maximizing the distance and dwell time for optimum curing of any ink, allowing increased conveyor belt speeds and dryer output.
This Little Red X3-D model is equipped with a 78" wide conveyor belt and three 72" wide infrared heaters (26,700w @ 240v total wattage) and can cure 1080+ plastisol-printed garments/h, 555+ water-based or discharge-printed garments/h.
With overall conveyor belt length of 88 in. (224 cm) long and 41 in. (104 cm) long heating chamber, the X3-D features a powerful 1,100 cfm targeted exhaust system as standard to rapidly remove moisture and air contaminates from the heating chamber, as well as cool the skin and controls.
Capacity can be increased as needs grow by adding additional heating chambers, extending the belt length and increasing the infinitely-variable speed setting of the digital belt control.
FLEXIBLECan cure plastisol, water-based, discharge and inkjet-printed white ink in record timePOWERFUL26,700w@240V total wattageMust be hard-wired into power terminalDEPENDABLEIndustry-leading 15-year heater warrantyEFFICIENTClosely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curingCONSISTENTLow friction belt aligner and DC belt speed control with digital displayHEAVY DUTY"X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass beltACCURATEDigital PID Temperature controller is accurate to +/-1°FADJUSTABLE2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heaterEXPANDABLEAdd 24 in. (61 cm) chambers and/or 18 in. (46 cm) belt extension
POWER OPTIONS240V / 66A / 3 Ph. / 4 wire 50/60HZ
380V / 46A / 3 Ph. / 5 wire 50/60HZ
All amps shown are FLA (Full Load Amps), not recommended line size! This dryer must be hard wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles, 210.20(a), 215.3 and 310 of the NEC code
Available Product Options (call for configuration pricing)
- Additional heating chambers and conveyor belt extensions
- Locking casters for mobility
- Creeper gear
