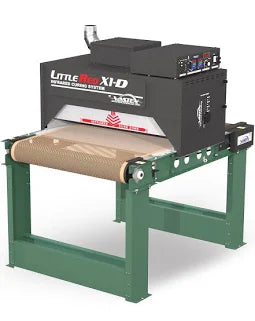

The Vastex LittleRed X1D-18 is a compact, high-performance infrared conveyor dryer designed specifically for DTG (Direct-to-Garment) digital white ink, plastisol, water-based, and discharge inks. This multi-purpose dryer ensures consistent, high-quality curing with an 18-inch wide conveyor belt and a full-width heating chamber for even heat distribution.
Featuring a boost zone heating system, the LittleRed X1D-18 quickly reaches curing temperatures to accommodate faster production speeds while eliminating flattening and halo effects associated with heat pressing. With its dual digital PID temperature control and adjustable belt-to-heater clearance, this dryer provides precision heat control and flexibility for a wide range of garments and specialty prints.
Key Features & Benefits:
-
Infrared Boost Zone – Rapidly heats ink to curing temperature, reducing drying time for DTG, water-based, discharge, and plastisol inks.
-
Compact Design – Ideal for small to mid-sized shops, requiring minimal floor space.
-
Adjustable Belt-to-Heater Clearance – Ranges from 2 to 7 inches, allowing for thicker garments and specialty prints.
-
X-Series Conveyor Belt System – Features a PTFE-coated fiberglass belt for smooth operation and precise tracking.
-
Dual Digital PID Temperature Control – Ensures accurate, consistent heat with ±1°F precision.
-
High-Powered Exhaust System – Removes moisture and air contaminants at 280 CFM (7.9 CMM) while cooling the housing and controls.
-
Modular Expandability – Allows for additional heating chambers and conveyor extensions to increase capacity as production grows.
Production Capacity:
-
Digital White Ink (DTG): Up to 34 garments/hr (2-minute dwell time).
-
Water-Based/Discharge Ink: Up to 81 garments/hr.
-
Plastisol Ink: Up to 162 garments/hr.
Why Choose Vastex LittleRed X1D-18?
-
Designed for DTG & Multi-Purpose Screen Printing – Optimized for DTG digital white ink, plastisol, water-based, and discharge inks.
-
Faster Curing Speeds – Boosted heat zone reduces dwell time and increases belt speed.
-
Consistent & Reliable Results – Eliminates flattening and halo effects from heat presses.
-
Expandable System – Add heating chambers & conveyor extensions as production needs grow.
-
Industry-Leading Warranty – Backed by Vastex’s best-in-class 15-year heater warranty and service.
Available Options:
- Additional heating chambers and belt extensions for expanded capacity.
-
Locking casters for easy mobility.
-
Creeper gear for ultra-slow belt movement when curing specialty prints.
