The Vastex LittleRed XD Dual Zone Conveyor Dryers are designed for DTG (direct-to-garment) printing, plastisol, water-based, and discharge ink curing, delivering maximum efficiency, consistency, and durability. With a boost zone for rapid pre-heating, advanced dual-zone heat control, and an adjustable belt-to-heater clearance, these dryers speed up production while ensuring superior curing results.
Engineered for small to large print shops, the LittleRed XD series offers models with 30", 54", and 78" conveyor widths, making it scalable and expandable to meet growing production demands. The high-powered infrared heating technology delivers even heat distribution to eliminate cold spots, ensuring fast and accurate curing without scorching or under-curing.
Key Features & Benefits:
-
High-Performance Infrared Heating – Equipped with closely spaced coils to provide high-density, medium-wavelength infrared heat for fast curing.
-
Boost Zone for Rapid Ink Curing – Quickly reaches curing temperatures for DTG digital white ink, plastisol, water-based, and discharge inks.
-
Multiple Conveyor Width Options – Available in 30", 54", and 78" to suit different production needs.
-
High Output Production Rates – Cures up to:
- 162 plastisol garments/hr (X1D-18)
- 150 plastisol garments/hr (X1D-30)
- 240 plastisol garments/hr (X2D-30)
- 360 plastisol garments/hr (X3D-30)
- 1080 plastisol garments/hr (X3D-78)
-
Dual-Zone Heat Controls – Independently adjustable heat zones allow for precise temperature control.
-
Adjustable Belt-to-Heater Clearance – Accommodates bulky items and oversized prints.
-
Powerful Exhaust System – Rapidly removes moisture and air contaminants, cooling the housing and controls.
-
Low Friction Belt Aligner & DC Speed Control – Provides consistent, smooth conveyor movement.
-
Industry-Leading 15-Year Heater Warranty – Built for long-term reliability and consistent results.
-
Expandable System – Additional heating chambers and belt extensions can be added for increased production.
Model Breakdown & Production Capacities:

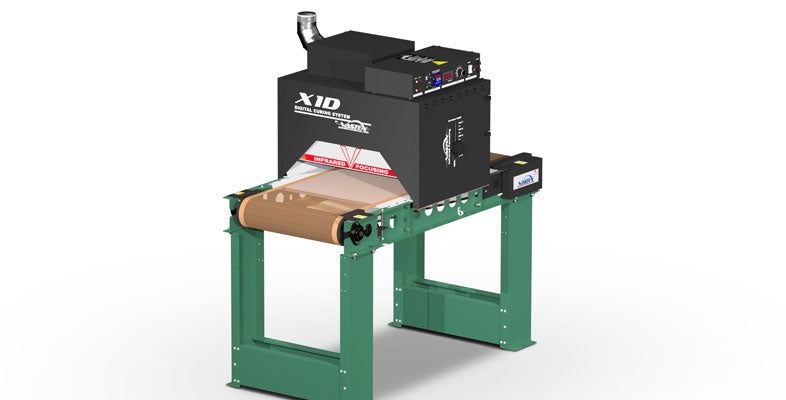

LittleRed X1D Series (Entry-Level DTG & Screen Printing Dryer)
-
X1D-18: 18" conveyor, cures 34 DTG garments/hr @ 2 min dwell time, 81 water-based garments/hr, 162 plastisol garments/hr.
-
X1D-30: 30" conveyor, cures 29 DTG garments/hr, 65 water-based garments/hr, 150 plastisol garments/hr.
LittleRed X2D Series (Compact & Affordable DTG Dryer)
-
X2D-30: 30" conveyor, high-powered pre-heating zone, cures 34 DTG garments/hr, 122 water-based garments/hr, 240 plastisol garments/hr.
LittleRed X3D Series (High-Output, Multi-Purpose Conveyor Dryer)
-
X3D-30: 30" conveyor, three 24" infrared heaters, cures 51 DTG garments/hr, 185 water-based garments/hr, 360 plastisol garments/hr.
-
X3D-54: 54" conveyor, cures 103 DTG garments/hr, 370 water-based garments/hr, 720 plastisol garments/hr.
-
X3D-78: 78" conveyor, handles three rows of garments, cures 155 DTG garments/hr, 555 water-based garments/hr, 1080 plastisol garments/hr.
Why Choose Vastex LittleRed XD Dual Zone Dryers?
-
Fastest curing times for DTG white ink, water-based, discharge, and plastisol inks.
-
Precision heat control prevents scorching and ensures proper curing.
-
Highly expandable for growing production needs.
-
Powerful exhaust and cooling system for efficient operation.
