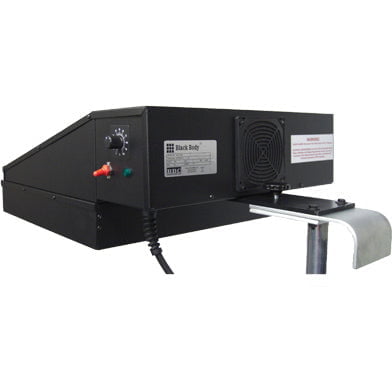

BBC Air Flash Dryer – Advanced Infrared & Forced Air Flash Curing

The BBC Air Flash Dryer is a hybrid infrared and forced-air drying system, designed to flash cure or fully cure plastisol and water-based inks with unmatched efficiency. Unlike traditional flash dryers, this unit actively pushes moisture away from the ink, allowing for faster, more consistent curing while preventing overheating and scorching.

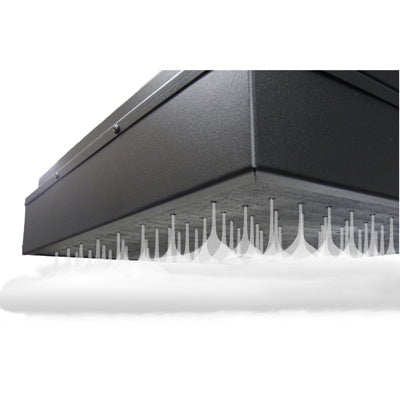

Featuring BBC’s infrared heating technology with evenly spaced air holes, the Air Flash Dryer delivers a balanced stream of heated air, ensuring uniform drying across the entire print surface. The built-in solid-state heat control allows precise temperature adjustment, making it an ideal solution for high-volume screen printing shops working with various ink types.

Key Features & Benefits:

• Forced-Air Drying Technology – Actively removes moisture from water-based inks for faster, more efficient curing.
• Even Heat Distribution – Infrared heater face with evenly spaced air holes ensures a uniform heat spread.
• Solid-State Heat Control – Adjustable from 0-100%, allowing precise heat customization.
• Magnetic Handle – Can be placed anywhere on the unit for easy manual operation.
• Compatible with Flash-A-Matic™ – Can be integrated for automatic flashing or used separately.
• Lightweight & Maneuverable – Weighs only 40 lbs., making repositioning easy.

Technical Specifications:

• Power Requirements: 240V / 16.7A
• Plug Type: NEMA 6-20P
• Weight: 40 lbs.

Available Upgrades & Accessories:

• Foot Pedal Auto Rotator (Part #BFA-009FS) – Hands-free rotation for automated workflow.
• Platen Guard – Additional heat protection for delicate prints.
• CE Certification Available – Contact for pricing.
• Low Profile Leg Kit – Adapts the unit for compact workspaces.
• Precise Height Adjustment Mechanism – Allows for customized height positioning.

Why Choose the BBC Air Flash Dryer?

• Prevents scorching with forced air that keeps the T-shirt surface cooler.
• Ensures even curing with a powerful infrared and air combination system.
• Ideal for water-based and plastisol inks, improving wash durability and efficiency.
• Lightweight and easy to maneuver while offering industrial-grade performance.
• Customizable with multiple add-ons for enhanced automation.

Ideal For:

• Screen printers working with water-based, plastisol, and hybrid ink systems.
• Shops looking to increase curing speed and efficiency.
• Businesses seeking a more advanced alternative to standard flash dryers.
• Printers who want precise temperature control with added air movement.
