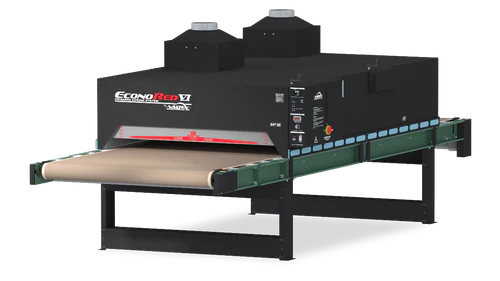

Vastex EconoRed VI Infrared Conveyor Dryer
Description
Description
The Vastex EconoRed VI Infrared Conveyor Dryer is a high-output, heavy-duty drying system designed for professional screen printers and DTF applications. Featuring advanced digital controls, a focused exhaust system, and adjustable belt-to-heater height, this dryer delivers consistent, efficient curing for plastisol, water-based, and discharge inks.
With an expandable design, durable construction, and precision-engineered heat control, the EconoRed VI Series ensures faster production speeds, greater efficiency, and long-term reliability.
Note: This product requires filling out a mandatory electrical form before purchase. Contact a representative to complete the form to ensure timely order processing.
Ships only to the continental U.S.
Key Features:
✔ Heavy-Duty X-Series Conveyor Belt Tracking System – Ensures smooth and precise belt movement, eliminating misalignment issues.
✔ Infrared Focusing System – Optimized heat distribution for more power at a lower cost.
✔ Adjustable Heater Height – Allows for 2" - 7" (5 - 17.7 cm) clearance between the belt and the heater for custom curing settings.
✔ Digital PID Temperature Control – Provides accurate temperature regulation to ±1°F, ensuring consistent curing results.
✔ DC Belt Speed Motor with Digital Display – Offers precise speed control for uniform curing across all substrates.
✔ Focused Exhaust System – Removes fumes and moisture from the chamber, improving airflow efficiency and preventing overheating.
✔ Expandable Design – Add heat chambers and belt extensions for higher production capabilities (HD Drive required for belts over 17’ long).
✔ Compact, High-Heat Engineering – Designed to be shorter and smaller while maximizing heat output and production efficiency.
Available Models & Specifications:
| Model | Belt Width x Length | Heater Width | Chamber Length | Standard Wattage |
|---|---|---|---|---|
| EconoRed VI 30” | 30” x 13¼’ | 24” | 9’ | 15,600W |
| EconoRed VI 54” | 54” x 13¼’ | 48” | 9’ | 31,200W |
| EconoRed VI 78” | 78” x 13¼’ | 72” | 9’ | 46,800W |
Curing Capacity:
| Ink Type | 1 Row | 2 Rows | 3 Rows |
|---|---|---|---|
| Plastisol (25-sec dwell time) | 900+ garments/hr | 1,800+ garments/hr | 2,700+ garments/hr |
| Water-Based/Discharge (70-sec dwell time) | 300+ garments/hr | 600+ garments/hr | 900+ garments/hr |
Why Choose the Vastex EconoRed VI Conveyor Dryer?
The Vastex EconoRed VI is a high-performance, industrial-grade dryer built for maximum efficiency, accuracy, and scalability. Whether curing plastisol, water-based, discharge, or DTF adhesives, this dryer provides fast, even heating and superior production speeds, making it a must-have for high-output print shops.
✔ Optimized for High-Volume Production
✔ Fast, Accurate Temperature Control for Consistent Curing
✔ Expandable for Increased Capacity
✔ Heavy-Duty, Industrial-Strength Construction for Longevity
