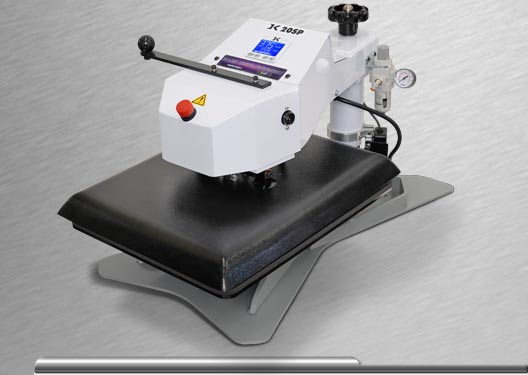

Digital Knight DK20SP Air-Operated Swing-Away Heat Press – 16" x 20" for High-Production Workflows

The Digital Knight DK20SP is an air-operated automatic swing-away heat press, designed for high-volume production with push-button operation and consistent, repeatable results. Built with a solid steel welded framework, this 16" x 20" heat press offers superior pressure control, digital accuracy, and effortless operation, making it the perfect choice for print shops requiring precision and efficiency beyond manual presses.

This press features Digital Knight's advanced control system, providing fully digital temperature and time control, along with a smooth swing-away motion for even pressure distribution. Capable of applying up to 3,000 lbs of pressure, the DK20SP is ideal for DTF transfers, sublimation, heat transfer vinyl (HTV), embroidery patches, and specialty heat applications.

Key Features & Benefits:

• Air-Operated Automatic Pressing – Push-button operation eliminates operator fatigue, increasing workflow efficiency.
• All-Thread™ Table Loading Design – Allows for fast, easy garment placement and layout adjustments.
• Fully Digital Temperature Control – Adjustable from 32°F to 600°F, with temperature readout accuracy of -2°F.
• Automatic Digital Timer & Dual Pre-Press Timer – Ensures precise, repeatable pressing times.
• High-Accuracy Air Regulator & Gauge – Adjustable 20-100 PSI range for precision pressure settings.
• Total Applied Force of 3,000 lbs – Ensures consistent, high-pressure results for various materials.
• 70 Programmable Presets – Saves commonly used settings for quick adjustments and workflow efficiency.
• PTFE-Coated 3/4" Thick Heat Platen – Prevents sticking and ensures even heat distribution.
• SuperCoil-Microwinding Heater Technology – Guarantees fast heat-up times and consistent temperature across the platen.
• Interchangeable Tables – Customizable for different material sizes and applications.
• Accommodates Materials Up to 2" Thick – Works with thick substrates like wood, tiles, plaques, and more.
• User-Selectable End-of-Cycle Alarms – Alerts operator when press cycle is complete.
• Tracks Pressing Cycle Counts – Records the total number of press operations for production tracking.

Technical Specifications:

• Model: DK20SP (Air-Operated 16" x 20" Swing-Away Press)
• Power Requirements: 1800W / 15A / 120V (Available in 220V for International Use)
• Air Compressor Requirement: 7-gallon tank, 1cfm at 100psi, 1/4" air line
• Maximum Applied Force: 3,000 lbs
• Weight: 220 lbs
• Machine Dimensions: 32" D x 27" W x 18" H

Warranty & Support:

• Lifetime Warranty on Heat Platen
• 5-Year Warranty on Frame
• 3-Year Warranty on Digital Controller
• 1-Year Warranty on Parts
• FREE Lifetime Tech Support!

Why Choose the Digital Knight DK20SP?

• Air-powered automation eliminates manual effort, increasing efficiency.
• Swing-away design provides even pressure and safe material handling.
• 16" x 20" platen size is perfect for standard and specialty applications.
• Heavy-duty construction ensures long-term durability.
• Ideal for production environments needing consistent high-pressure pressing.
