AmeriFLEX™ Pneumatic Heat Press Machine with Stand & Dual Registration Guides

AmeriFLEX™ Pneumatic Heat Press Machine with Stand & Dual Registration Guides

The AmeriFLEX™ Pneumatic Heat Press Machine is a high-performance, production-ready heat press designed for professional decorators who demand speed, consistency, and precision. Engineered with pneumatic cylinder-driven pressure, this machine supports both fully automatic and manual operation, making it ideal for high-volume shops and advanced production workflows.

Now fully equipped with a heavy-duty rolling stand and dual registration guides on each platen, this system delivers enhanced stability, repeatable alignment, and faster setup—perfect for DTF, HTV, sublimation, and specialty transfers across a wide range of materials.

Key Features & Benefits

• Fully Automatic & Manual Operating Modes
  Seamlessly switch between automatic pneumatic cycles and manual operation for maximum flexibility across different job types.

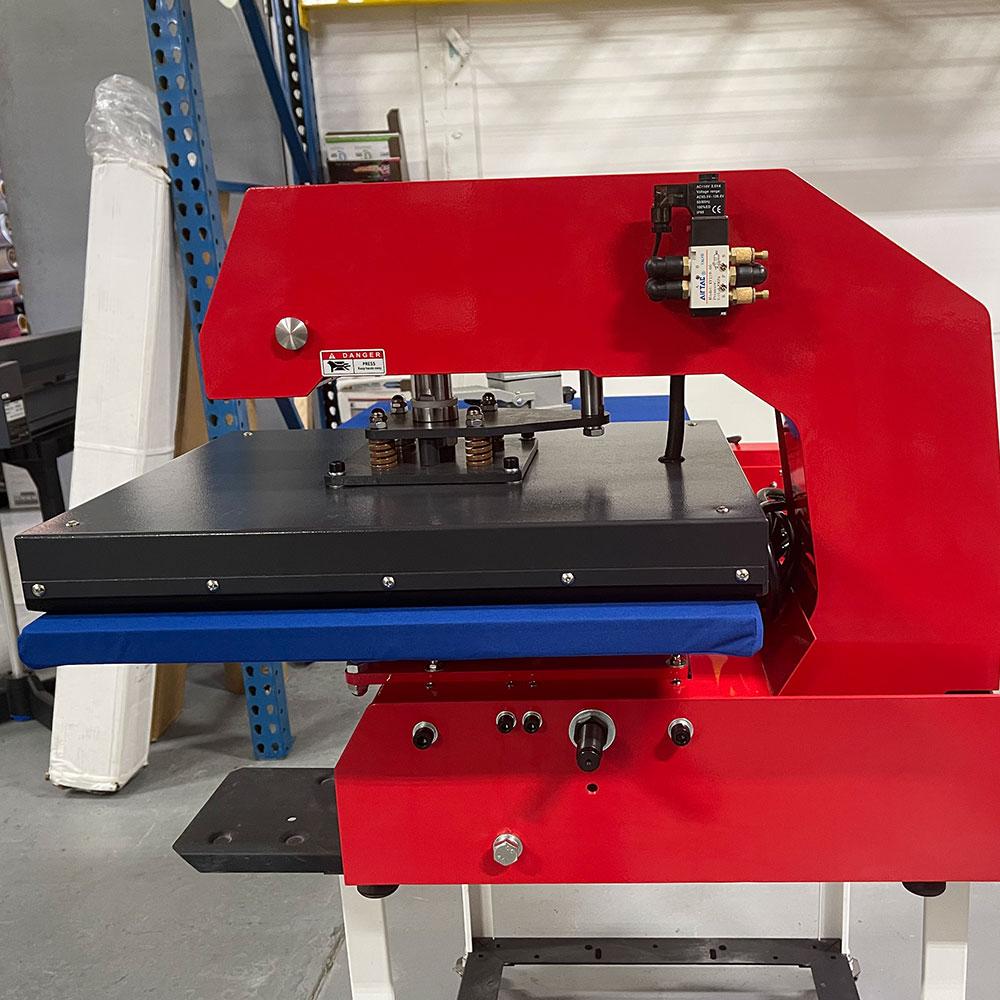

• Pneumatic Cylinder-Driven Pressure System
  Ensures even, consistent pressure on every press, eliminating inconsistencies common with manual heat presses.

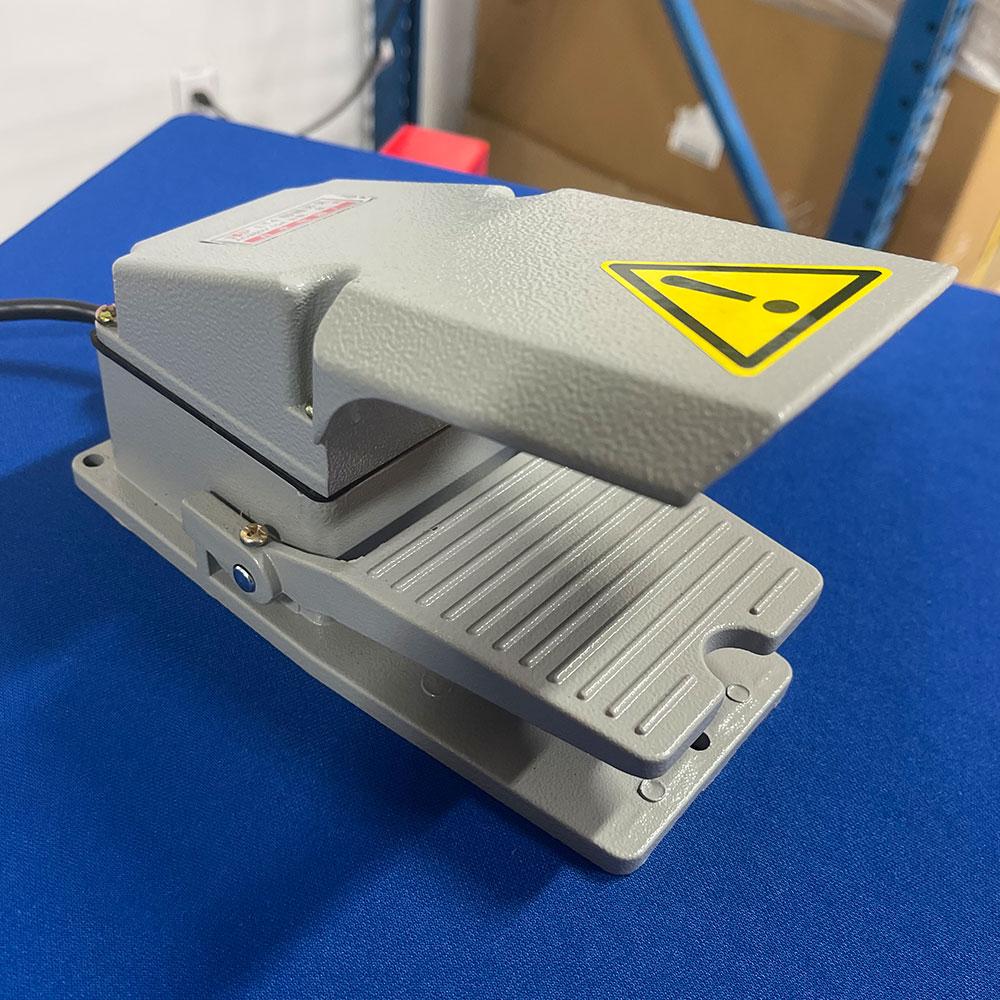

• Foot Switch Control (Hands-Free Operation)
  Increases workflow efficiency and operator safety during production runs.

• Emergency Stop Switch
  Instantly halts operation in case of emergency, ensuring operator safety at all times.

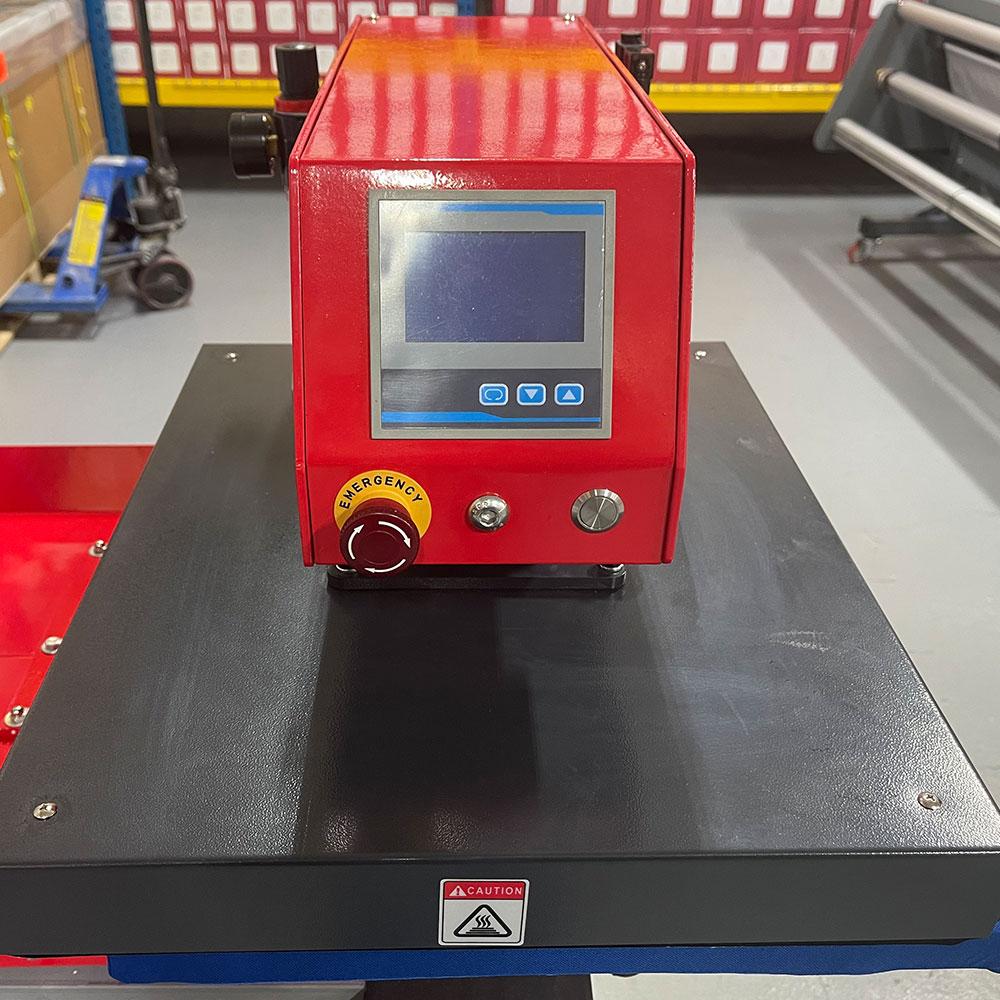

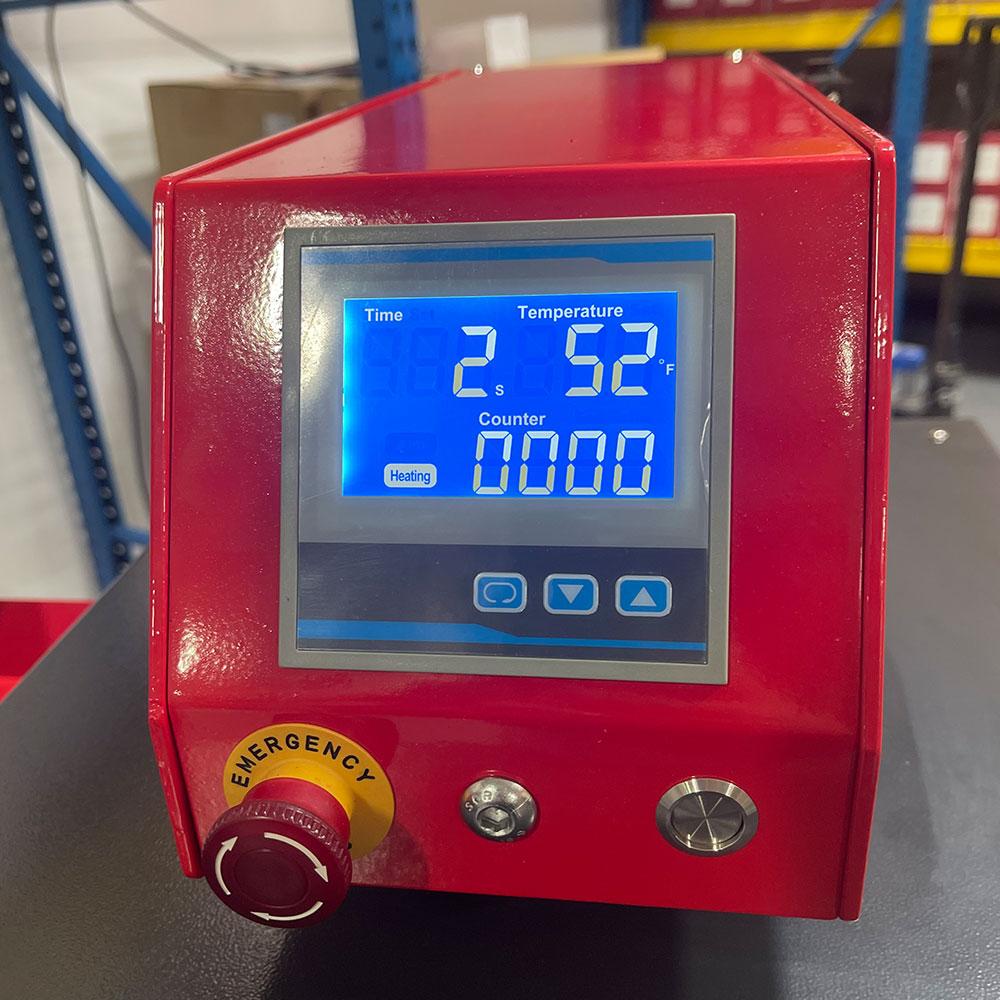

• Digital Touchscreen Interface
  User-friendly control panel allows precise adjustment of temperature and time settings.

• High-Density Cast Aluminum Heating Plate
  23mm thick platen provides superior heat retention, even temperature distribution, and long-term durability.

• Adjustable Speed & Pressure Control
  Fine-tune settings for different substrates, transfer materials, and production requirements.

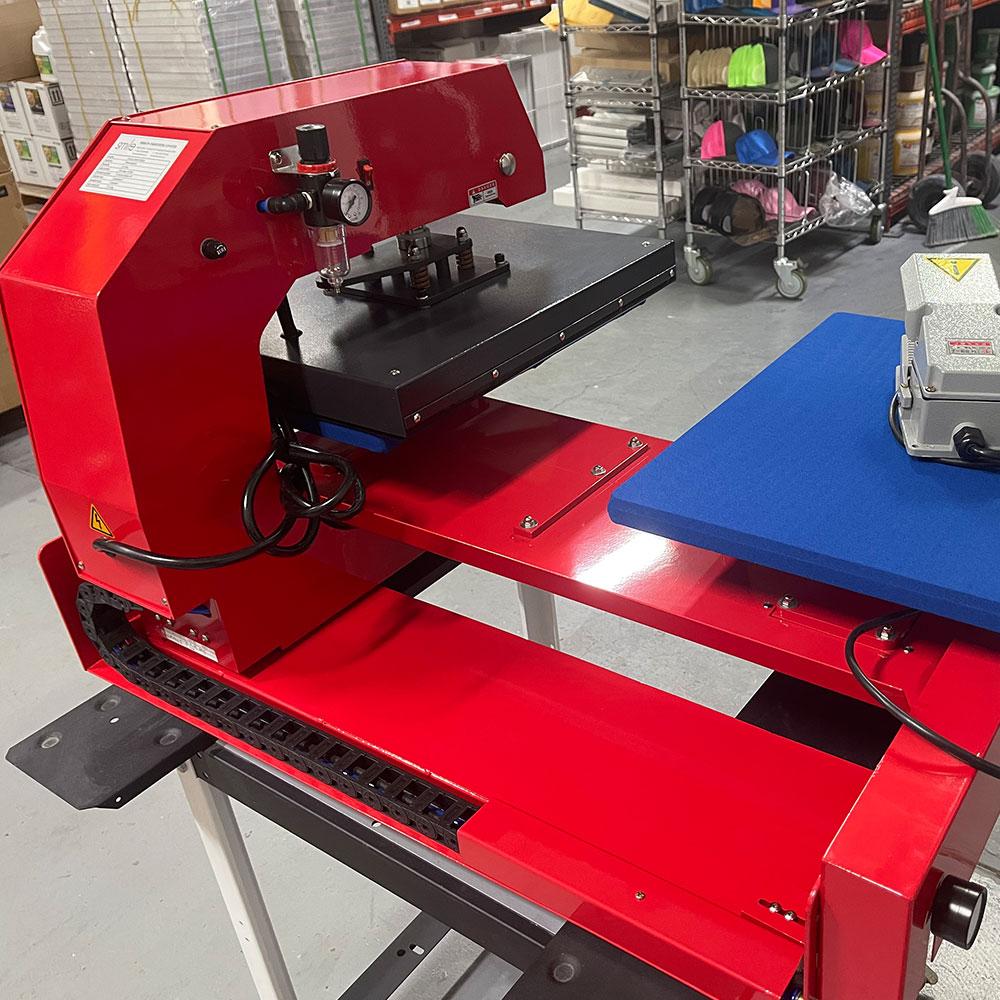

• Dual Registration Guides on Each Platen
  Built-in alignment guides ensure repeatable placement accuracy, ideal for multi-step designs and consistent positioning.

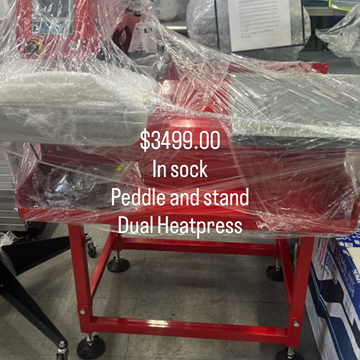

• Included Heavy-Duty Stand
  Provides added stability, ergonomic working height, and mobility for shop environments.

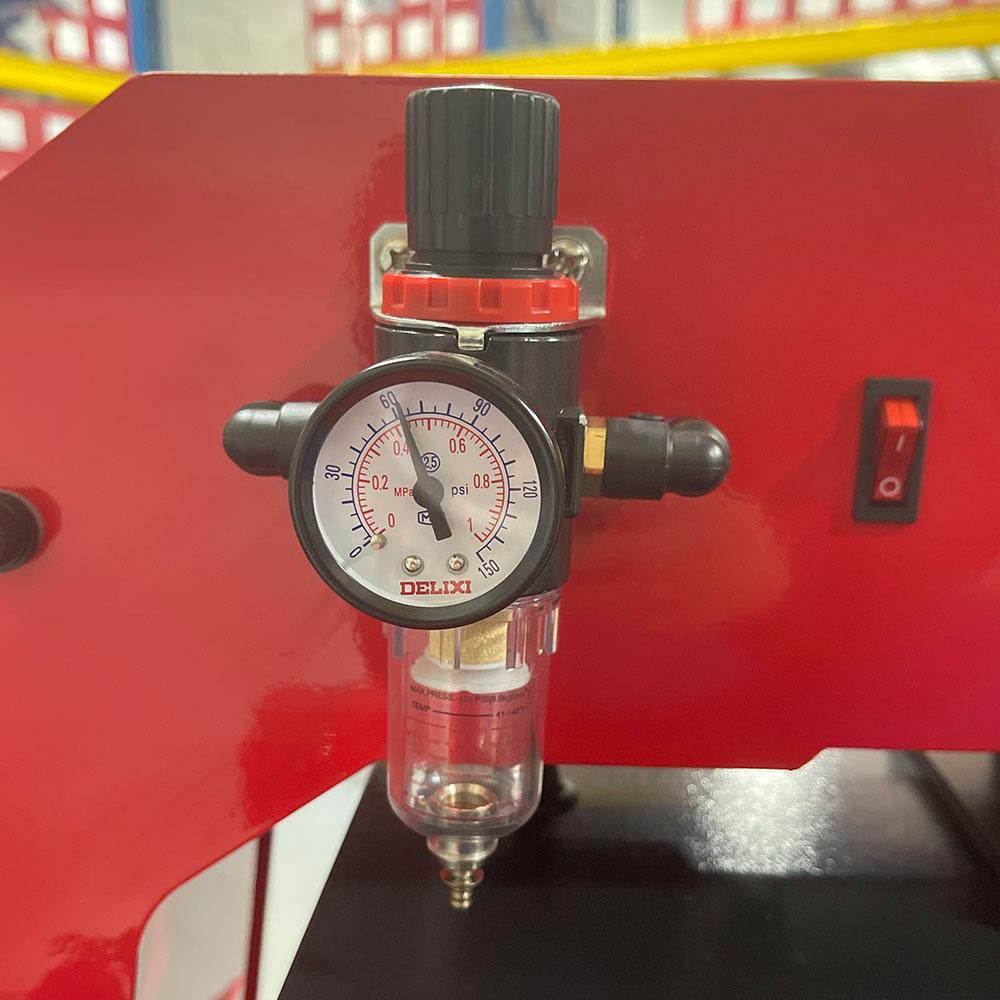

• Water Separator & Circuit Protection System
  Protects pneumatic and electrical components, extending machine lifespan and reliability.

• High-Volume Production Capability
  Capable of up to 260 presses per hour, making it suitable for commercial and industrial use.

• Optional Small Platen Sizes Available
  Additional platen options:

  • 180 × 500 mm

  • 280 × 500 mm
    Ideal for youth garments, sleeves, and smaller apparel items.

Technical Specifications

• Maximum Temperature: Room temperature up to 500°F

• Time Range: 0–999 seconds

• Drive System: Pneumatic Cylinder

• Operating Pressure: 58–87 PSI

• Model: PHP-4050AS

• Platen Size: 400 × 500 mm

• Power Requirement: 110V / 2.5 kW (Desktop Unit)

• Air Compressor: Required (sold separately)

Recommended Applications

• Apparel Decoration – T-shirts, uniforms, branded merchandise

• DTF & HTV Transfers – High-accuracy, repeatable applications

• Sublimation Printing – Flat heat transfer applications

• Sportswear & Performance Fabrics – Consistent pressure on stretch materials

• Accessories & Specialty Items – Bags, socks, gloves, non-woven fabrics

• High-Volume Production Shops – Designed for continuous operation

How to Use

1. Set Temperature & Time
   Adjust parameters using the digital touchscreen interface.

2. Prepare the Substrate
   Place garment or material flat on the platen.

3. Align the Transfer
   Use the dual registration guides to position designs accurately.

4. Engage the Press
   Activate using the foot switch; pneumatic system applies consistent pressure automatically.

5. Release & Peel
   Open the press after the cycle and peel transfer film according to material specifications.

6. Repeat for Production
   Adjust settings as needed for different substrates or designs.

Storage & Maintenance Recommendations

• Store in a cool, dry environment when not in use

• Clean platen surfaces regularly to prevent adhesive buildup

• Inspect pneumatic connections periodically to maintain optimal pressure

• Ensure adequate ventilation during extended operation

Why Choose the AmeriFLEX™ Pneumatic Heat Press Machine?

The AmeriFLEX™ Pneumatic Heat Press Machine with Stand and Dual Registration Guides is built for decorators who require precision, speed, and repeatability. Whether you’re running a small professional shop or a high-volume production facility, this system delivers consistent, long-lasting transfers with minimal operator effort and maximum control.
