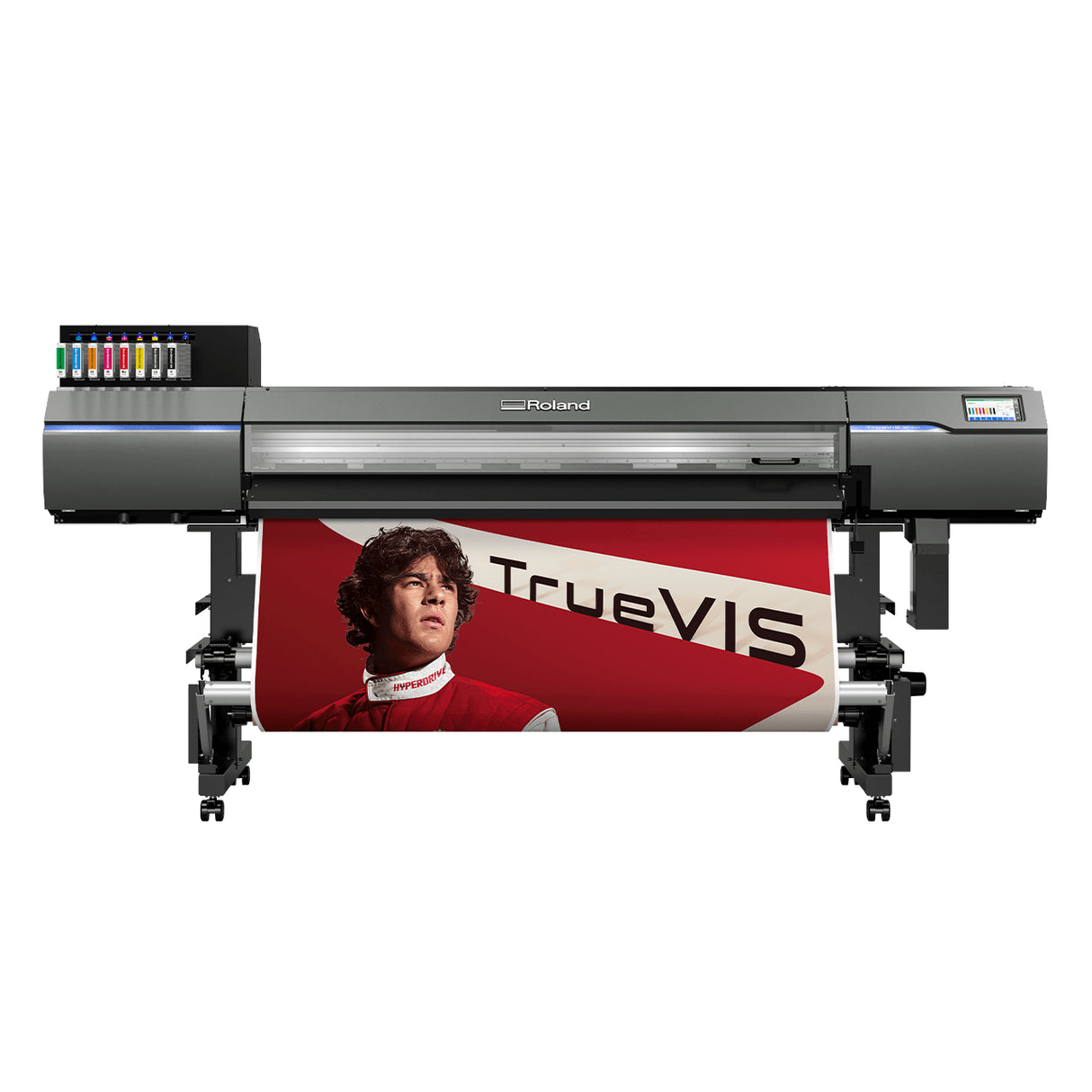

TrueVIS XP-640 Large-Format Eco-Solvent Printer

The TrueVIS XP-640 is a high-performance large-format eco-solvent printer engineered for professional sign, graphics, and print production environments that demand speed, precision, and color accuracy. Built on Roland’s advanced piezo ink-jet technology, the XP-640 delivers exceptional image quality, smooth gradations, and reliable output across a wide range of media types.

Designed to handle everything from vinyl wraps and banners to decals and fine art graphics, the XP-640 supports media widths up to 64 inches and achieves print resolutions of up to 1,800 dpi, ensuring crisp text, sharp details, and vibrant color reproduction. Its eco-solvent ink system is available in both four-color CMYK and eight-color configurations, including Light Black, Green, Orange, and Red, allowing for an expanded color gamut and superior brand color matching.

The integrated media heating system optimizes ink adhesion and drying performance, while automatic power-saving features and low acoustic noise levels make the XP-640 well-suited for busy production shops. With robust connectivity, included professional software, and a durable industrial design, the TrueVIS XP-640 is a reliable solution for print professionals looking to increase productivity without sacrificing quality.

Key Features & Specifications

Printing Technology

• Piezo ink-jet printing method

• Maximum print resolution: 1,800 dpi

Media Handling

• Media width: 10.2 to 64 inches (259 to 1,625 mm)

• Maximum printing width: 63.5 inches (1,615 mm)

• Maximum media thickness: 39.3 mil (1.0 mm) with liner

• Maximum roll weight: 99 lb (45 kg)

• Roll outer diameter: 9.8 inches (250 mm)

• Core diameter: 3 in (76.2 mm) or 2 in (50.8 mm)

Ink System

• Eco-Solvent Ink (TH), 500 ml cartridges

• Color configurations:

  • Eight colors: Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, Red

  • Four colors: Cyan, Magenta, Yellow, Black

Media Heating System

• Print heater temperature: 86 to 113 °F (30 to 45 °C)

• Dryer temperature: 86 to 131 °F (30 to 55 °C)

• Warm-up time: approximately 5–20 minutes, depending on environment

Connectivity

• Ethernet (100BASE-TX / 1000BASE-T, automatic switching)

Power & Efficiency

• Rated input: 100–120 / 220–240 V AC, 50/60 Hz

• Power consumption:

  • During operation: Approx. 1,180 W

  • Sleep mode: Approx. 50 W

• Automatic sleep (power-saving) function

Noise Levels

• During operation: 66 dB(A) or less

• Standby: 53 dB(A) or less

Dimensions & Weight

• Dimensions (W × D × H): 113.7 × 29.5 × 55.8 inches
  (2,886 × 748 × 1,415 mm)

• Weight: 417 lb (189 kg)

Operating Environment

• Operating temperature: 68 to 89.6 °F (20 to 32 °C)

• Operating humidity: 35 to 80% RH (non-condensing)

• Storage temperature: 41 to 104 °F (5 to 40 °C)

• Storage humidity: 20 to 80% RH (non-condensing)

Included Items

• Dedicated stand

• Media take-up unit

• Media holders

• Power cord

• Replacement blade for separating knife

• Cleaning liquid bottle and drain bottle

• User’s Manual

• Software: VersaWorks and Roland DG Connect
