Vastex Little Red X-Series Conveyor Dryers | High-Performance Screen

The Vastex Little Red X-Series Conveyor Dryers are engineered to provide high-efficiency curing for plastisol, discharge, and water-based prints. With a range of sizes and configurations, these dryers are ideal for screen printing shops of all scales, offering precise heat control, consistent curing, and expandable options to meet growing production demands.

Each Little Red X-Series dryer is equipped with high-output infrared heaters that feature no gaps between heating elements, ensuring uniform heat distribution across the entire curing surface. The adjustable belt-to-heater clearance provides versatile curing for different garment thicknesses, while the powerful exhaust system efficiently removes moisture and fumes, keeping the dryer cool and efficient.

Designed with industry-leading durability, the Little Red X-Series dryers come with a 15-year heater warranty, heavy-duty belt tracking system, and precision temperature control. Whether you're curing plastisol inks or high-performance water-based/discharge prints, these conveyor dryers deliver reliable, high-capacity performance to increase production speed without compromising quality.

Little Red X-Series Models & Capacities:

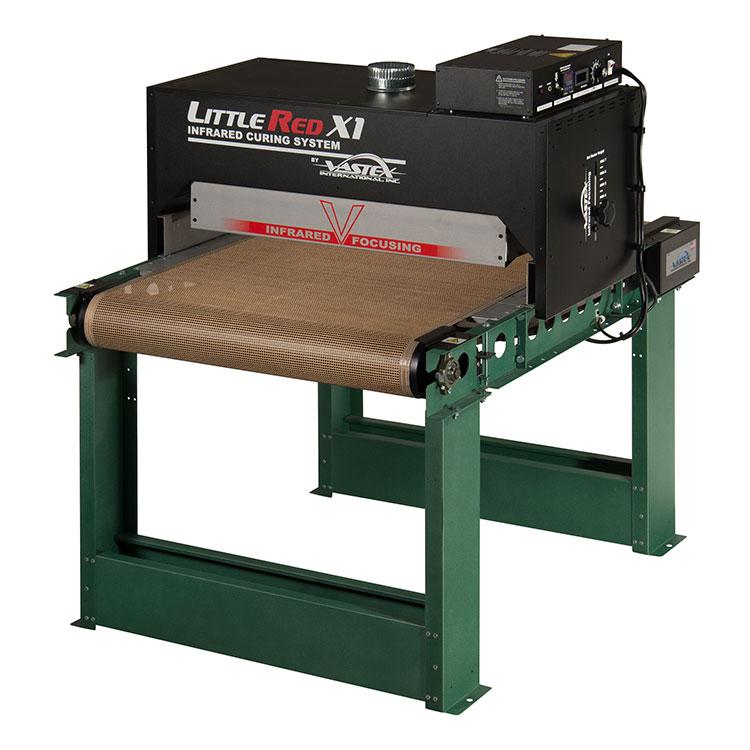

Little Red X1-Series: Single Heater System

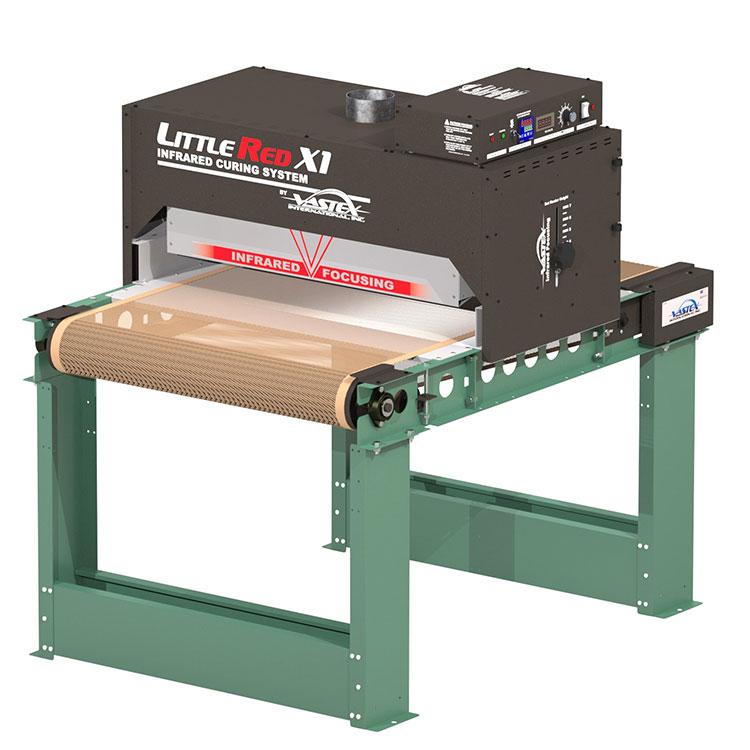

✔ X1-30 (30" Belt) – Cures up to 90 plastisol prints or 45 water-based prints per hour (120V/2,000W heater)
✔ X1-30 (30" Belt) – Cures up to 130 plastisol prints or 45 water-based prints per hour (240V/2,600W heater)

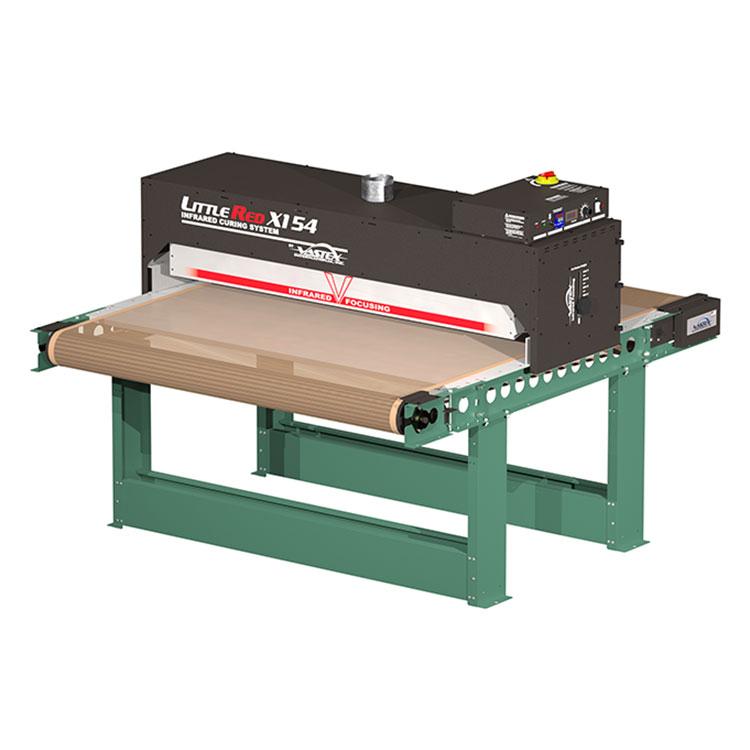

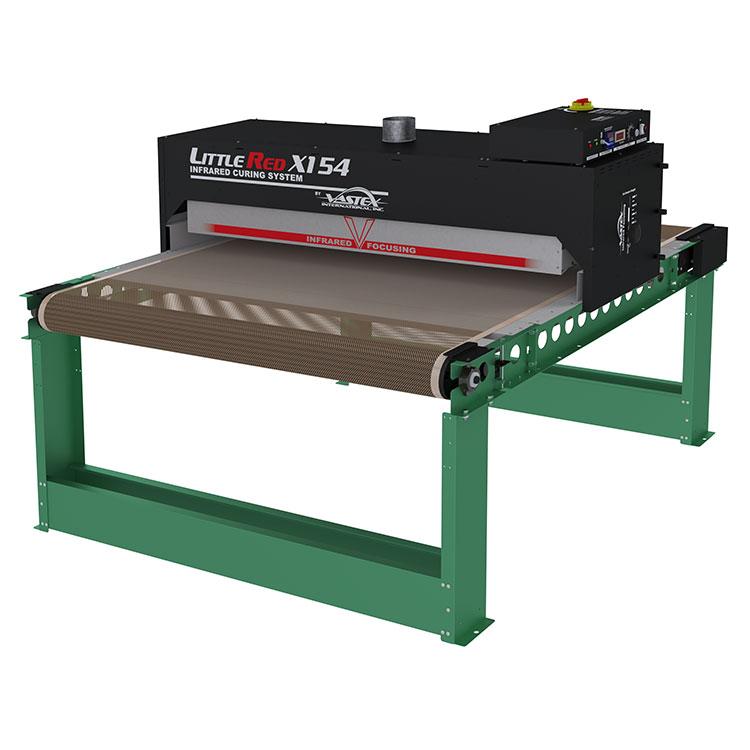

✔ X1-54 (54" Belt) – Cures up to 260 plastisol prints or 90 water-based prints per hour (240V/5,200W heater)

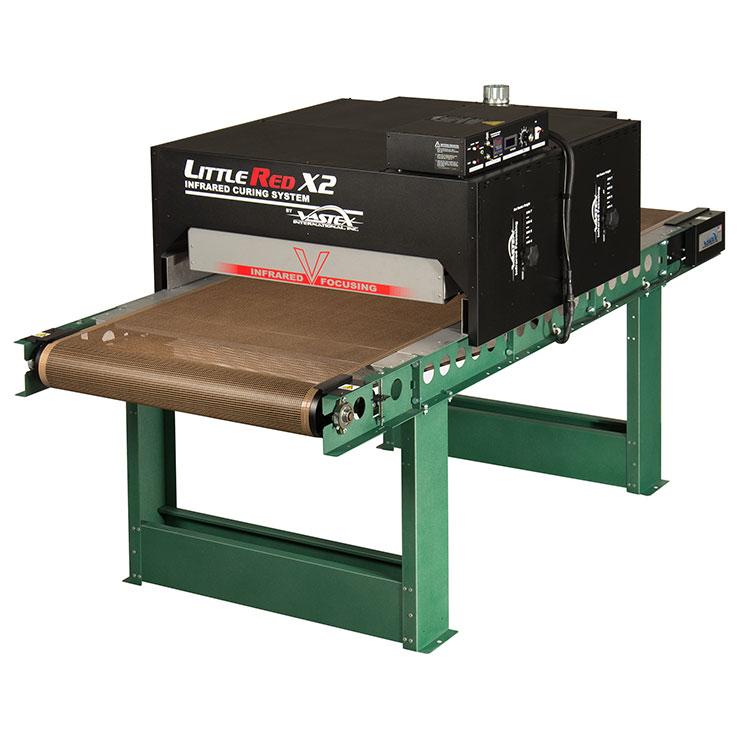

Little Red X2-Series: Dual Heater System

✔ X2-30 (30" Belt) – Cures up to 260 plastisol prints or 90 water-based prints per hour (Two 24" wide 240V/2,600W heaters)

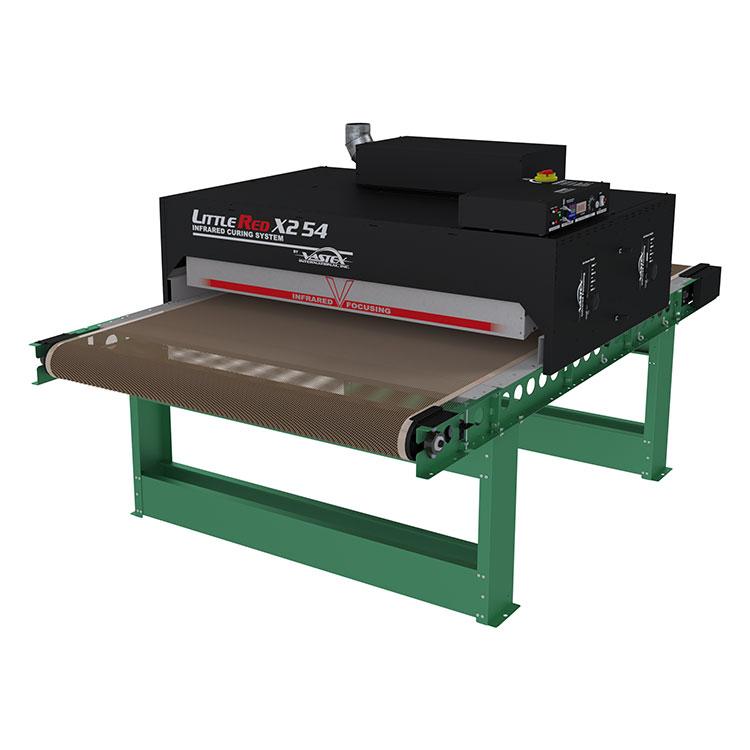

✔ X2-54 (54" Belt) – Cures up to 520 plastisol prints or 180 water-based prints per hour (Two 48" wide 240V/5,200W heaters)

Little Red X3-Series: Triple Heater System

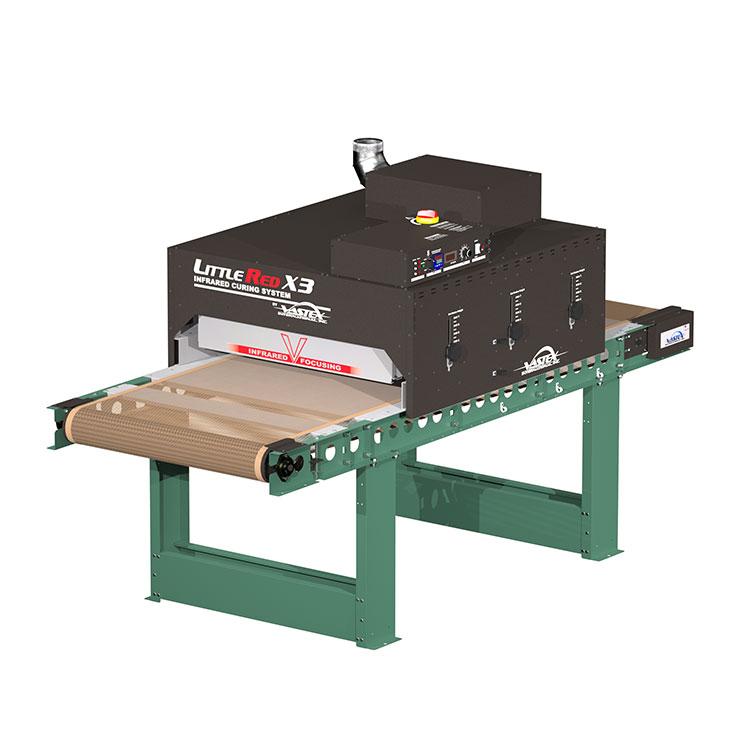

✔ X3-30 (30" Belt) – Cures up to 360 plastisol or water-based prints per hour (Three 24" wide 240V/2,600W heaters)

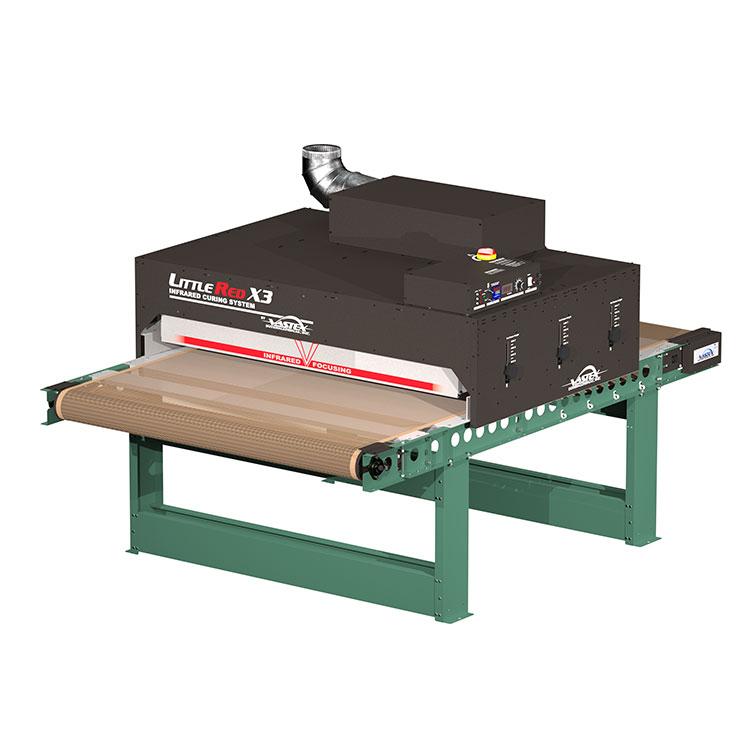

✔ X3-54 (54" Belt) – Cures up to 720 plastisol prints or 240 water-based prints per hour (Three 48" wide 240V/5,200W heaters)
✔ Expandable Design – Additional 18" or 36" heating chambers and conveyor extensions available for higher production needs.

Key Features & Benefits:

✔ Efficient Curing System – Infrared heaters with no gaps between elements ensure even heating and consistent ink curing.
✔ Dependable Performance – Industry-leading 15-year heater warranty guarantees long-term reliability.
✔ Advanced Cooling System – Powered exhaust keeps the cabinet cool while removing moisture and fumes.
✔ Precision Temperature Control – Digital PID controller accurate to ±1°F for consistent curing conditions.
✔ Heavy-Duty Construction – X-Series conveyor tracking system with PTFE-coated fiberglass belt for smooth operation.
✔ Customizable & Expandable – Additional heating chambers and belt extensions available to increase curing capacity as business grows.
✔ Adjustable Belt-to-Heater Clearance – 2" - 7" adjustable height settings for optimal heat application on various garments and substrates.
✔ DC Belt Speed Control – Digital belt speed adjustment for accurate curing times across different print types.

Recommended Applications:

✔ Plastisol Ink Curing – Perfect for screen-printed plastisol designs requiring precise and consistent heat settings.
✔ Water-Based & Discharge Ink Drying – Advanced high-output infrared heating efficiently cures water-based and discharge prints.
✔ High-Volume Production Shops – Expandable heating chambers and conveyor belts accommodate growing print production.
✔ Textile & Apparel Manufacturing – Consistent, high-speed garment curing for large-scale apparel decoration businesses.

Available Options & Accessories:

✔ Additional Heating Chambers – Expand curing capacity with 18" and 36" add-on chambers.
✔ Conveyor Belt Extensions – Extend belt length for increased drying efficiency.
✔ Locking Casters – Improve mobility and flexibility in the shop.
✔ Heavy-Duty Belt Motor – Standard on X3-54 models, recommended for longer conveyor belts.
✔ Creeper Gear Option – Enhances belt control for specialty applications.

Why Choose Vastex Little Red X-Series Conveyor Dryers?

✔ Unmatched heat consistency with infrared heating technology.
✔ Expandable system to grow with your production needs.
✔ Energy-efficient and built to last with a 15-year heater warranty.
✔ Precise temperature and belt speed control for optimal curing.
✔ Versatile compatibility for plastisol, water-based, and discharge inks.
