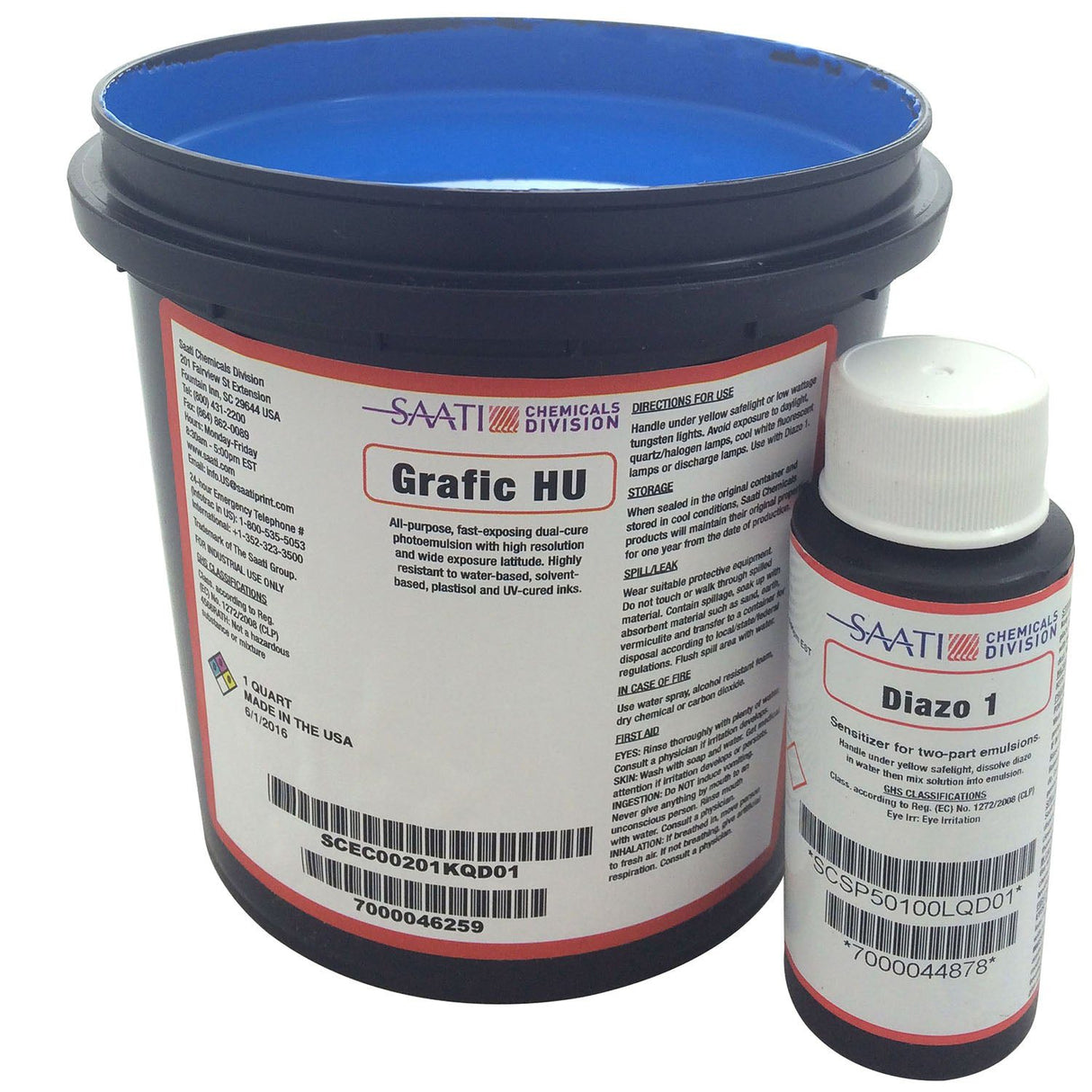

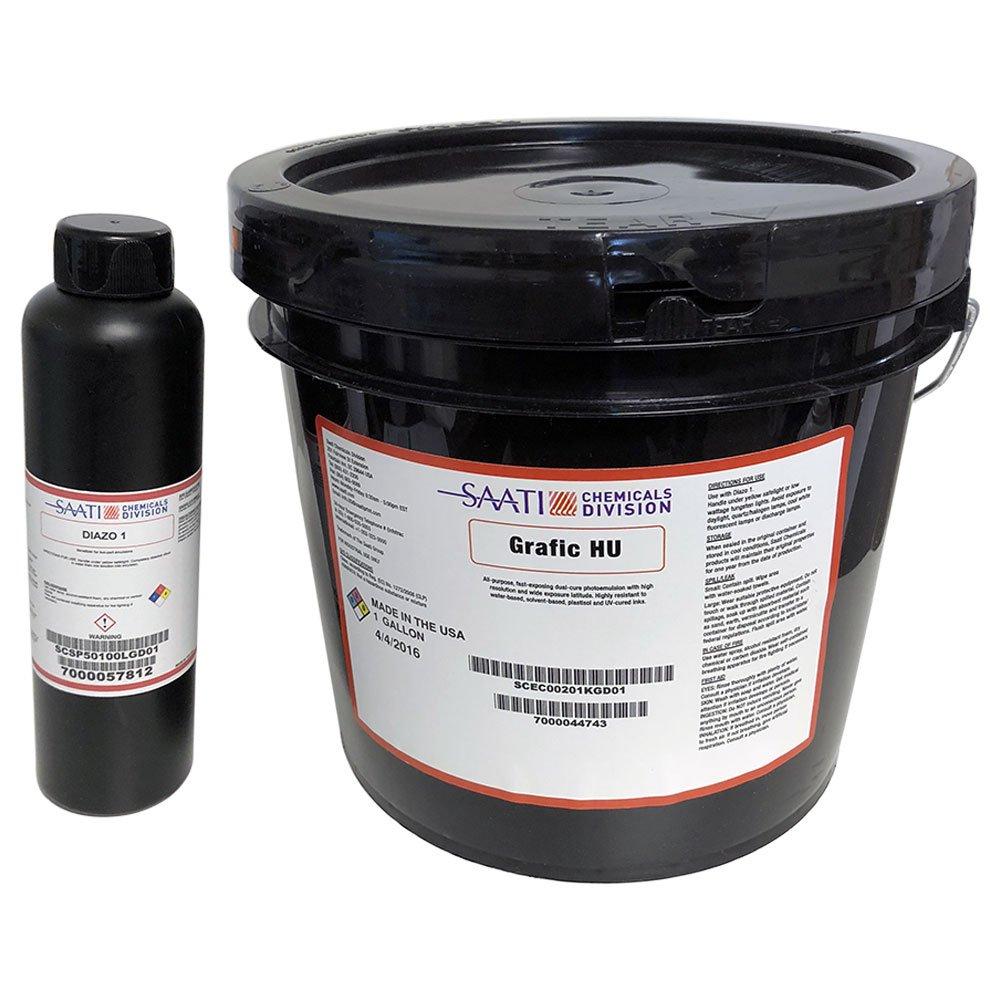

Saati Grafic HU + Diazo 1 – High-Performance Dual-Cure Emulsion

Grafic HU by SaatiChem® is a versatile dual-cure direct emulsion engineered for high-precision graphics printing applications. Designed to work with UV-cured, plastisol, solvent-based, and water-based inks, this premium emulsion delivers exceptional print definition, stencil resolution, and durability across various substrates.

With controlled particle size, Grafic HU provides sharp, detailed prints on any mesh. Unlike conventional dual-cure emulsions, it dries to a tack-free finish, ensuring stencils are smooth and ready for precise printing without unwanted adhesion. Its high solids content (39%) allows for low Rz stencils, producing superior definition even on the finest meshes.

Grafic HU is particularly well-suited for ceramic decals and direct printing on ceramic tiles for third firing, offering high durability for demanding applications.

Key Features & Benefits:

• Versatile Ink Compatibility – Works with UV-cured, plastisol, solvent-based, and water-based inks.
• Controlled Particle Size – Provides excellent print definition across all mesh counts.
• Tack-Free Drying – Dries smooth, eliminating adhesion issues common in dual-cure emulsions.
• High Solids Content (39%) – Produces low Rz stencils with high-definition prints.
• Fast Exposure & Wide Exposure Latitude – Ensures efficient screen processing.
• Easy Reclamation – Designed for quick and effortless stencil removal.
• Application-Specific Performance – Ideal for ceramic decals and direct ceramic tile printing, providing long-lasting durability.

Application Instructions:

Sensitizing & Mixing:

1. Prepare diazo sensitizer following bottle instructions.
2. Thoroughly mix with emulsion until fully blended.
3. Let the mixture stand to allow air bubbles to escape.
4. Use within one month for best results.

Coating:

1. Apply one or two coats on the substrate side of the screen with a high-quality scoop coater.
2. Follow with one or two coats on the squeegee side.

Drying & Storage:

• Dry screens in a dust-free area under dark or yellow light at a max temperature of 104°F (40°C).
• Store in a safelight environment and use within one month after sensitization.
• Sealed containers maintain original properties for one year when stored in cool conditions.
