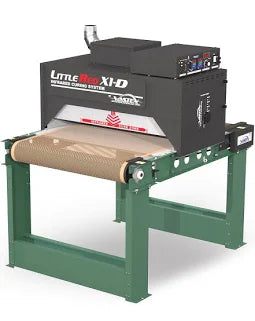

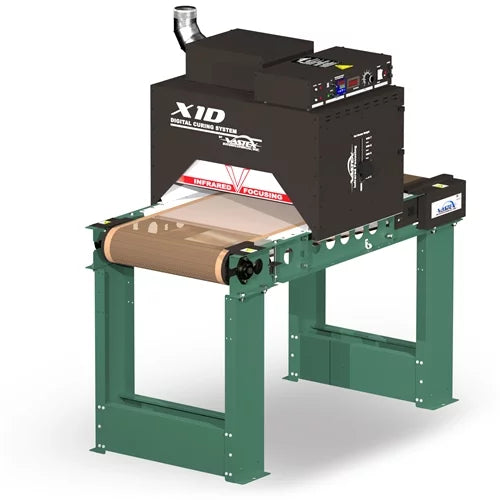

Vastex LittleRed X1D-18 DTG & Multi-Purpose Infrared Dryer

The Vastex LittleRed X1D-18 is a compact, high-performance infrared conveyor dryer designed specifically for DTG (Direct-to-Garment) digital white ink, plastisol, water-based, and discharge inks. This multi-purpose dryer ensures consistent, high-quality curing with an 18-inch wide conveyor belt and a full-width heating chamber for even heat distribution.

Featuring a boost zone heating system, the LittleRed X1D-18 quickly reaches curing temperatures to accommodate faster production speeds while eliminating flattening and halo effects associated with heat pressing. With its dual digital PID temperature control and adjustable belt-to-heater clearance, this dryer provides precision heat control and flexibility for a wide range of garments and specialty prints.

Key Features & Benefits:

• Infrared Boost Zone – Rapidly heats ink to curing temperature, reducing drying time for DTG, water-based, discharge, and plastisol inks.
• Compact Design – Ideal for small to mid-sized shops, requiring minimal floor space.
• Adjustable Belt-to-Heater Clearance – Ranges from 2 to 7 inches, allowing for thicker garments and specialty prints.
• X-Series Conveyor Belt System – Features a PTFE-coated fiberglass belt for smooth operation and precise tracking.
• Dual Digital PID Temperature Control – Ensures accurate, consistent heat with ±1°F precision.
• High-Powered Exhaust System – Removes moisture and air contaminants at 280 CFM (7.9 CMM) while cooling the housing and controls.
• Modular Expandability – Allows for additional heating chambers and conveyor extensions to increase capacity as production grows.

Production Capacity:

• Digital White Ink (DTG): Up to 34 garments/hr (2-minute dwell time).
• Water-Based/Discharge Ink: Up to 81 garments/hr.
• Plastisol Ink: Up to 162 garments/hr.

Why Choose Vastex LittleRed X1D-18?

• Designed for DTG & Multi-Purpose Screen Printing – Optimized for DTG digital white ink, plastisol, water-based, and discharge inks.
• Faster Curing Speeds – Boosted heat zone reduces dwell time and increases belt speed.
• Consistent & Reliable Results – Eliminates flattening and halo effects from heat presses.
• Expandable System – Add heating chambers & conveyor extensions as production needs grow.
• Industry-Leading Warranty – Backed by Vastex’s best-in-class 15-year heater warranty and service.

Available Options:

• Additional heating chambers and belt extensions for expanded capacity.
• Locking casters for easy mobility.
• Creeper gear for ultra-slow belt movement when curing specialty prints.
