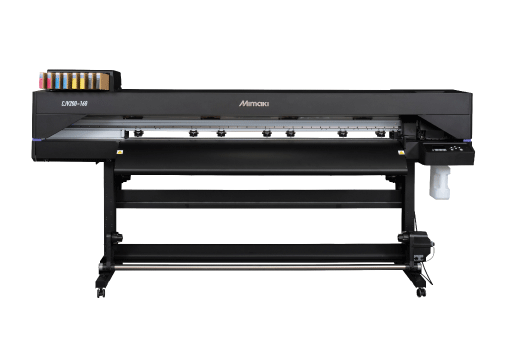

Mimaki CJV200 Series Printer / Cutter

Mimaki CJV200 Series Printer / Cutter

High Value. Small Footprint. Professional Print & Cut Performance.

The Mimaki CJV200 Series is a compact, high-performance print-and-cut solution designed for businesses that need professional indoor and outdoor graphics without sacrificing space or budget. Offering true “one printer does it all” versatility, the CJV200 combines durable eco-solvent printing, precision contour cutting, and intuitive software into a complete, standalone production system.

Built on Mimaki Core Technologies, the CJV200 Series delivers outstanding image quality, excellent productivity, and industry-leading outdoor durability—making it ideal for sign shops, print providers, and growing production environments.

Each system includes easy-to-use RIP software for accurate print-and-cut workflows, making it simple to produce decals, stickers, wall graphics, banners, and signage with confidence and repeatability.

Warranty Coverage
• 1-Year Mimaki Total Care Warranty
• 2-Year Mimaki Parts Plus+ Warranty

Key Benefits

• Integrated print & cut in one compact unit
• Outstanding print quality with excellent outdoor durability
• Small footprint ideal for space-conscious shops
• Complete system including printer, cutter, software, and inks
• Easy-to-use RIP software for precise contour cutting
• High productivity at an attractive price point
• Powered by Mimaki Core Technologies for reliability and efficiency

Available Models & Print Widths

• CJV200-75: Up to 31.5" print width
• CJV200-130: Up to 53.6" print width
• CJV200-160: Up to 63.4" print width

Choose the size that best fits your production needs.

Print Performance

• Printhead: One on-demand piezo print head (single)
• Print Resolution:
X: 600 / 1200 dpi
Y: 600 / 900 / 1200 dpi
• Print Speed (4-Color Mode): Up to 183 sq ft/hr

Media Handling

• Maximum Media Width:
CJV200-75: 31.9"
CJV200-130: 53.9"
CJV200-160: 63.8"
• Maximum Media Thickness: Up to 0.04" (1 mm)
• Maximum Media Weight: 55 lbs

Ink Compatibility

• Eco-Solvent Ink: Mimaki SS22
• Available colors: C, M, Y, K, Lc, Lm, Lk, Orange

Connectivity & Power

• Interface: USB 2.0 Hi-Speed, Ethernet (1000 BASE-T)
• Power Supply: AC 100–120V / 200–240V (dual input)
• Power Consumption:
Max: 1320W ×2
Sleep Mode: 4.5W

Operating Environment

• Temperature: 68°–86°F (20–30°C)
• Humidity: 35–65% RH (non-condensing)

Dimensions & Weight

CJV200-75
• Size: 77"W × 29.5"D × 54"H
• Weight: 231.4 lbs

CJV200-130
• Size: 99"W × 29.5"D × 54"H
• Weight: 286.6 lbs

CJV200-160
• Size: 109"W × 29.5"D × 54"H
• Weight: 308.6 lbs

Certifications

VCCI Class A, FCC Class A, ETL IEC 62368-1, CE (EMC, Low Voltage, Machinery Directive, RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA

Ideal Applications

• Decals and stickers
• Wall graphics
• Indoor and outdoor signage
• Banners and posters
• Retail and promotional graphics
