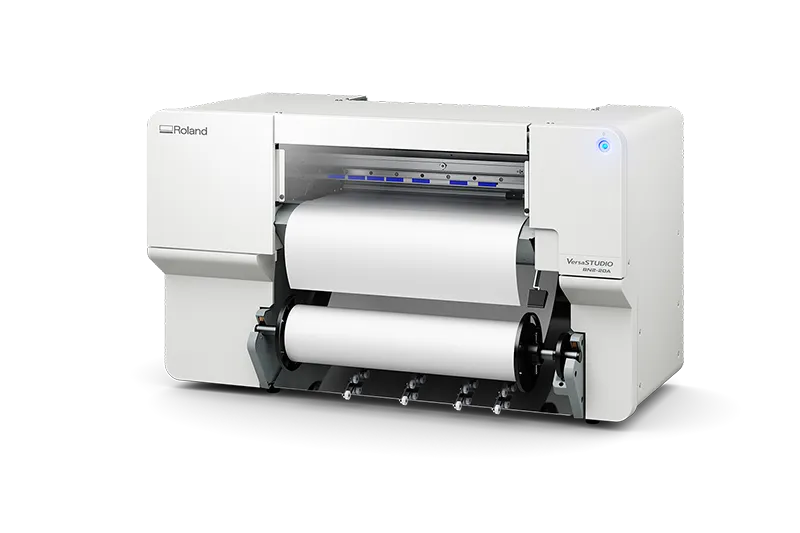

VersaSTUDIO BN2-20 BN2-20A Series : Next-Generation Print and Cut Powerhouse
- Enhanced Performance: Roland DG’s BN2 VersaSTUDIO BN2-20 BN2-20A– series represents an evolution in compact printing and cutting, offering significantly faster print speeds and enhanced functionality.
- Designed for Professional Use: This VersaSTUDIO BN2-20 BN2-20A series delivers professional-quality printing and cutting, suitable for a wide array of applications in various industries.
- Optimized Productivity: With its faster print speeds, the BN2-20 BN2-20A series ensures optimum productivity, making it ideal for high-demand print environments.
- Affordable Investment: The VersaSTUDIO BN2-20 BN2-20A series priced to accommodate the budgets of startups and smaller businesses, it provides professional capabilities without a hefty investment.
- User-Friendly: The BN2 series is easy to operate, even for individuals with no prior printing experience, ensuring a smooth learning curve.
- Space-Efficient Design: the VersaSTUDIO BN2-20 BN2-20A series compact size makes it an excellent fit for spaces where room is at a premium, such as home offices, small workshops, or crowded print shops.
- Intuitive Software Included: The VersaSTUDIO BN2-20 BN2-20A series comes equipped with feature-rich, intuitive design and output software, enhancing the overall user experience.
- Versatile Applications: Ideal for businesses looking to upgrade their print and cut capabilities, the BN2 series combines speed, precision, and quality in a compact, efficient package.
| Printer Method | Piezo ink-jet method | ||
|---|---|---|---|
| Media | Width | 5.91 to 20.2 in. (150 to 515 mm) | |
| Thickness | Maximum 1.0 mm (39.3 mil) with liner, for printing Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting | ||
| Roll outer diameter | Maximum 5.9 in. (150 mm) | ||
| Roll weight | Maximum 13.2 lb. (6 kg) | ||
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm ) | ||
| Printing/cutting width (*1) | Maximum 18.89 in. (480 mm) | ||
| Ink | Type | 220-ml cartridge | |
| Colors | Cyan, Magenta, Yellow, Black | Cyan, Magenta, Yellow, Black, White | |
| Printing resolution (dots per inch) | Maximum 1,440 dpi | ||
| Cutting speed | 0.39 to 5.9 in/s (10 to 150 mm/s) | ||
| Blade force (*2) | 30 to 500 gf | ||
| Blade | Type | Roland CAMM-1 series blade | |
| Offset | 0.000 to 1.500 mm (0.0 to 59 mil) | ||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||
| Media heating system (*3) | Print heater set temperature: | 86 to 95 ยฐF (30 to 35 ยฐC) | |
| Dryer set temperature: | 86 to 100.4 ยฐF (30 to 38 ยฐC ) | ||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Rated input | 100-240 Va.c. 50/60 Hz 2.1 A | ||
| Power consumption | During operation | Approx.185 W | |
| Sleep mode | Approx.27W | ||
| Acoustic noise level | During operation | 62 dB (A) or less | |
| During standby | 60 dB (A) or less | ||
| Dimensions (Width x Depth x Height) | 42.1 in. ร 24.3 in. ร 24.5 in. (1,069 mm ร 617 mm ร 622 mm) | ||
| Weight | 137 lb. (62 kg) | ||
| Environment | During operation (*4) | Temperature: 68 to 89.6 ยฐF (20 to 32 ยฐC), Humidity: 35 to 80 % RH (no condensation) | |
| Not operating | Temperature: 41 to 104 ยฐF (5 to 40 ยฐC) Humidity: 20 to 80 % RH (no condensation) | ||
| Included items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User’s Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc. | ||
| *1 | The length of printing or cutting is subject to the limitations of the program. |
| *2 | 500 gf is the maximum instantaneous blade force.The blade force must be adjusted according to details such as the media thickness.< |
| *3 | Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached. |
| *4 | Operating environment๏ผUse in an operating environment within this range.) |
 |
